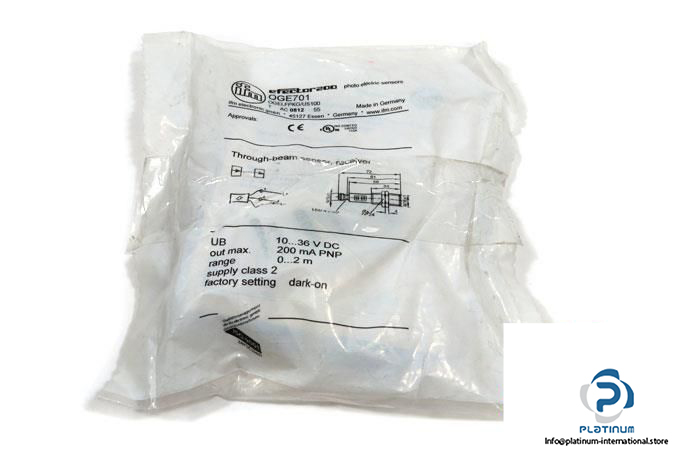

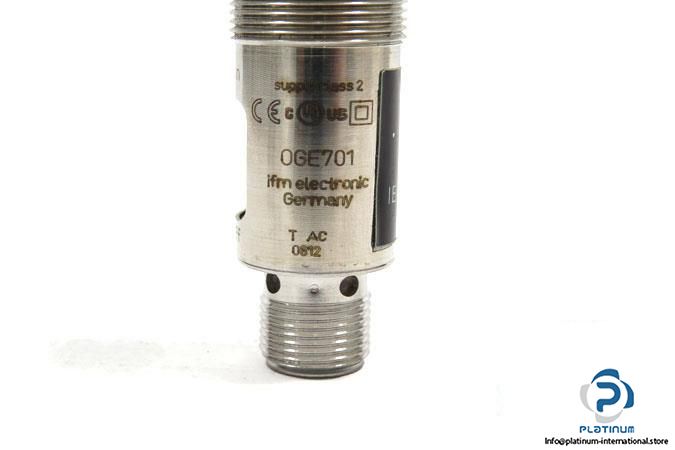

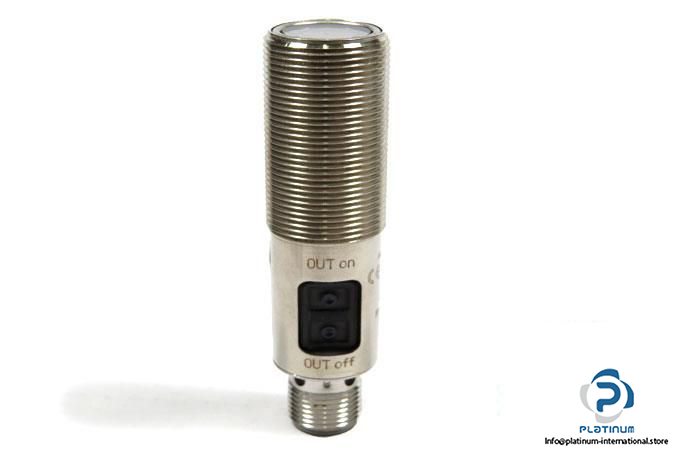

IFM OGE701 Through-Beam Laser Sensor – Receiver

Sensing Range max.: 2000 mm

Real Sensing Range: ± 10% mm

Operating Voltage: 10 … 36 V DC

Switching output current: 200 mA DC

Switching frequency: 1000 Hz

Output Function: light-on/dark-on mode; (programmable)

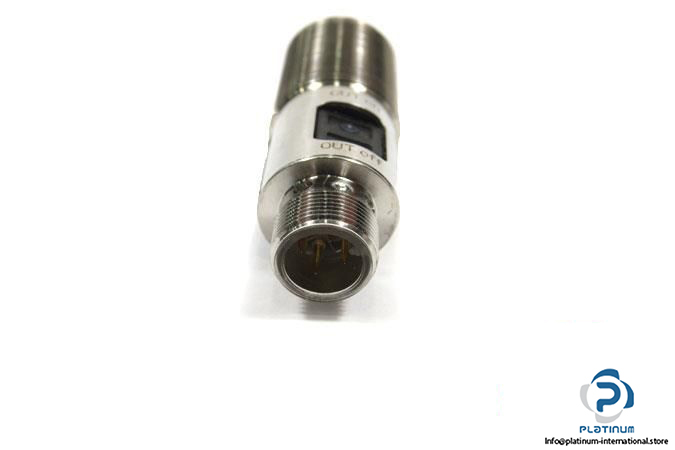

Connector type: M12 Connector

Protection Class: II

Enclosure rating: IP65, IP67

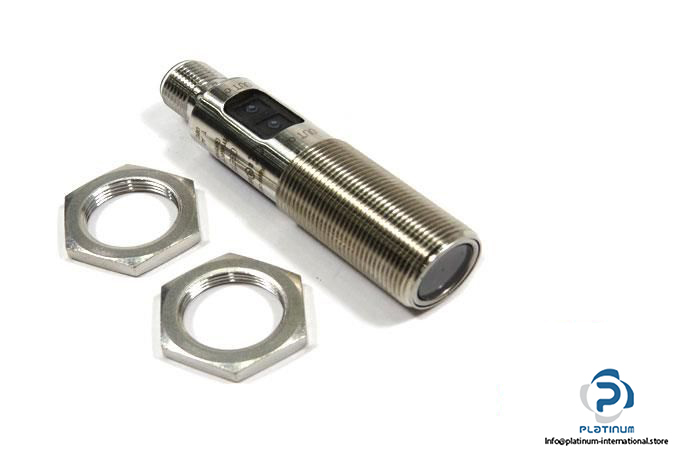

Housing: Threaded type

Ambient Operating temperature: -10 … 60 °C

Diameter, Housing length: 18, 72 mm

Material: Stainless steel

Lens material: PMMA

Weight: 61.7 g

Condition: New
