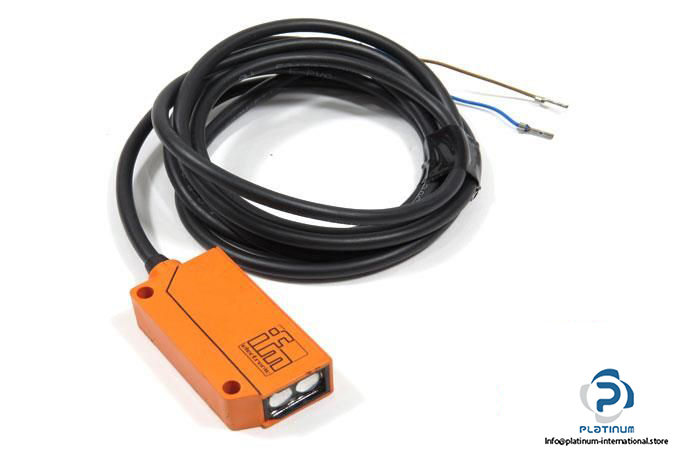

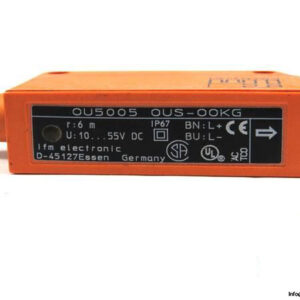

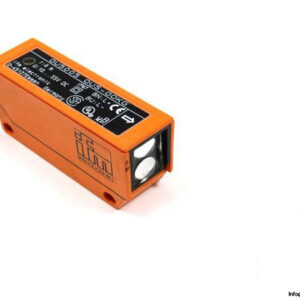

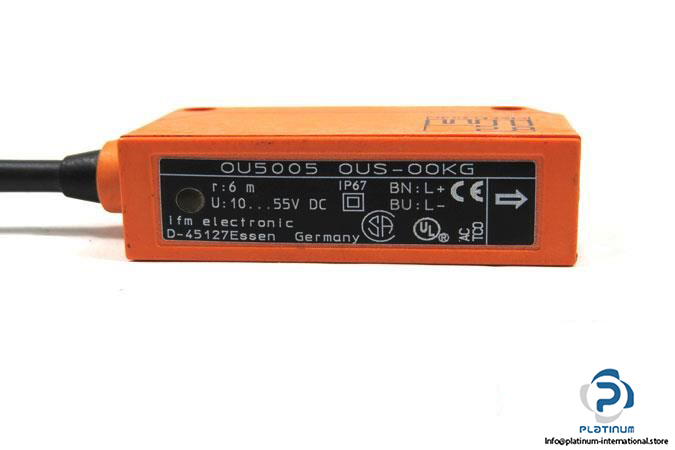

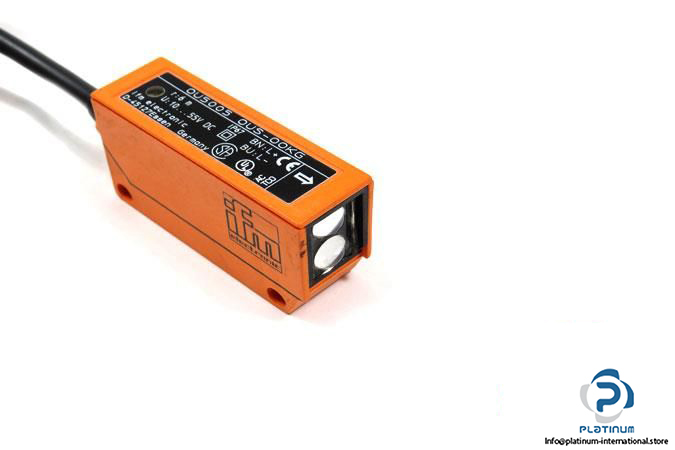

IFM OU5005 Through-Beam Photoelectric Sensor-Transmitter

Manufacturer: ifm

Type: THROUGH-BEAM PHOTOELECTRIC SENSOR -TRANSMITTER

Part No.: OU5005

MRN: OUS-OOKG

Sensing Range: 6 m

Detection zone: Transmitter

Operating Voltage: 0 … 55 V DC

Voltage Drop max.: 10 … 55 V DC

Current Consumption: 20 mA DC

Type of light: Infrared light

Wave length: 880 nm

Light spot diameter: 734 mm

Connector type, length: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -25 … 80°C

Dimensions: 28 x 16 x 51 mm

Material: PPO modified

Lens material: Glass

Weight: 138 g
