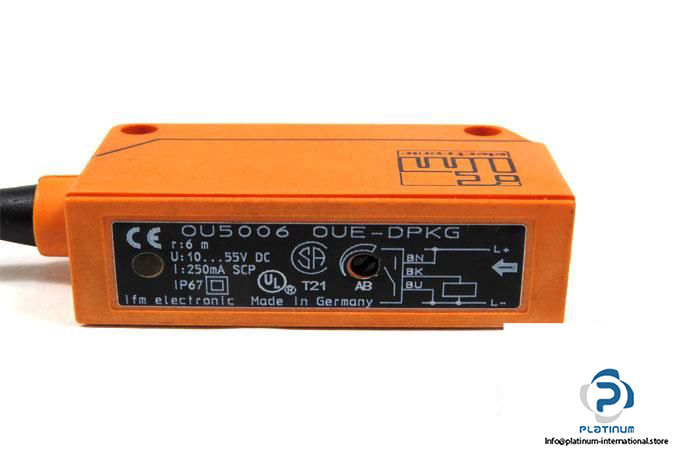

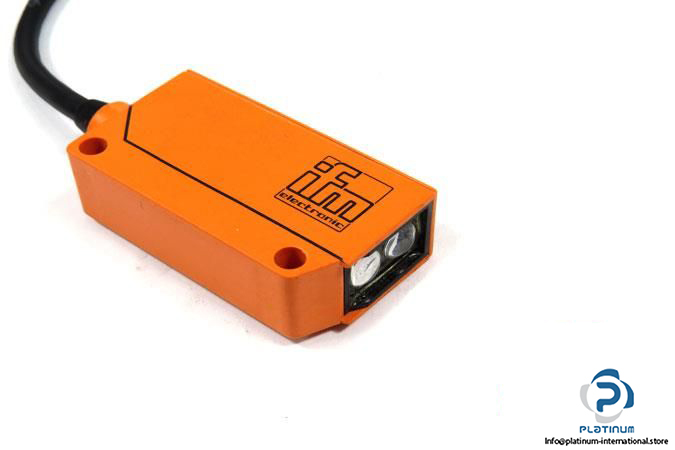

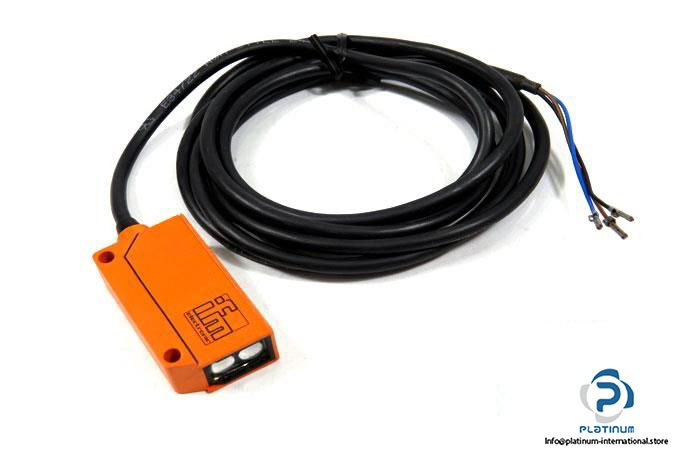

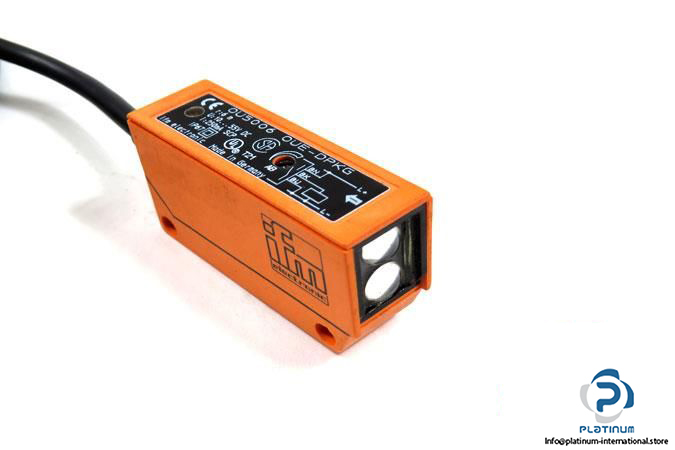

IFM OU5006 Through-Beam Photoelectric Sensor – Reciever

Manufacturer: IFM

Type: THROUGH-BEAM PHOTOELECTRIC SENSOR- RECIEVER

Part No.: OU5006

MRN: OUE-DPKG

Sensing Range: 6000 mm

Operating Voltage: 10 … 55 V DC

Voltage Drop Max.:  2.5 V DC

Switching Output Current: 250 mA DC

Current Consumption: 20 mA (24V)

Switching Frequency: 140 Hz

Electrical Design: PNP

Output Function: Dark on Mode

Type Of Light: Infrared Light

Wave Length: 880 nm

Connector Type: PVC Cable

Protection Class: II

Enclosure Rating: IP67

Housing: Rectangular

Ambient Operating Temperature: -25 … 80 °C

Dimension: 28 x 16 x 51 mm

Material: PPO Modified

Lens Material: Glass

Lens Alignment: Side Sensing

Weight: 0.1 kg
