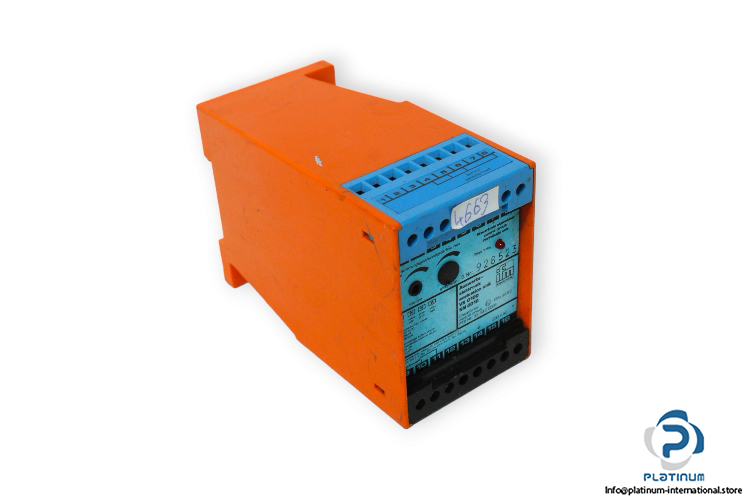

IFM SN 0010 Control Monitor

Manufacture: Ifm
Type: Control Monitor for Flow Sensors
Model: SN0010
Series: VS 0100

Application: Flow monitoring
Operating voltage: 230 V AC
Max. power consumption: 2 VA
Function of flow monitoring: relay energized when flow is present
Switch point: potentiometer
Mounting: housing for DIN rail mounting
Materials: Plastic
Display: function LED, red
Relay AC: 250 V AC, 8 A
Relay DC: 24 V DC/ L/R < 200 ms /4 A
Connection terminals: 16 x …2.5 mm²
Ambient operation temperature: 0 … 60°C
Protection Degree: Housing: IP 40, Terminal: IP 20
Dimensions: 75 x 55 x 110 mm
