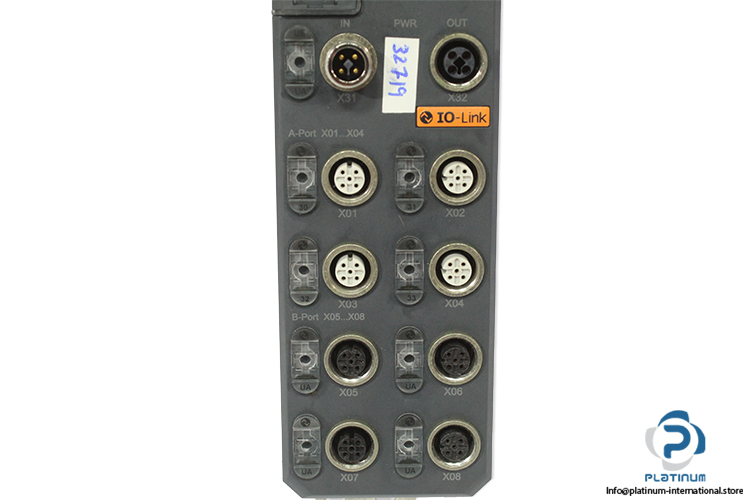

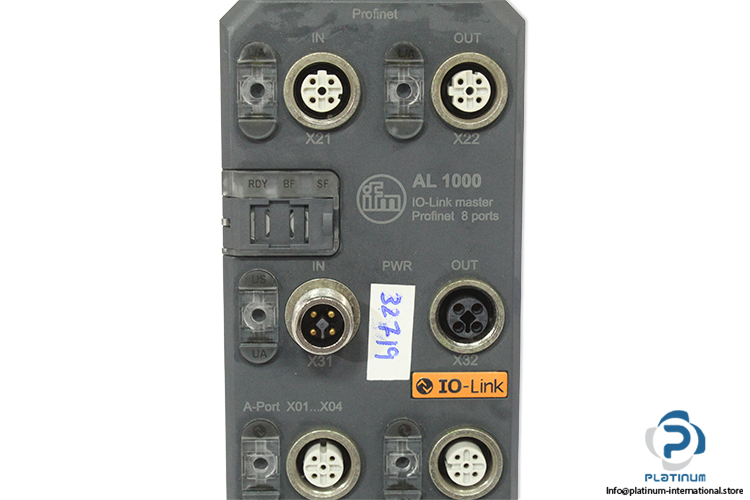

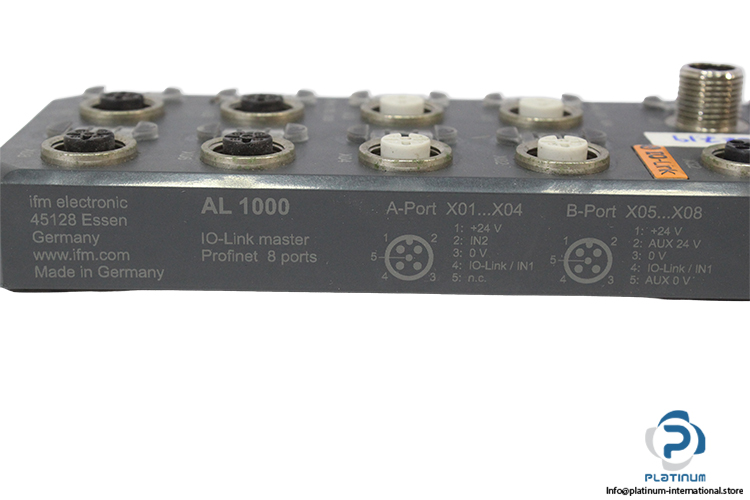

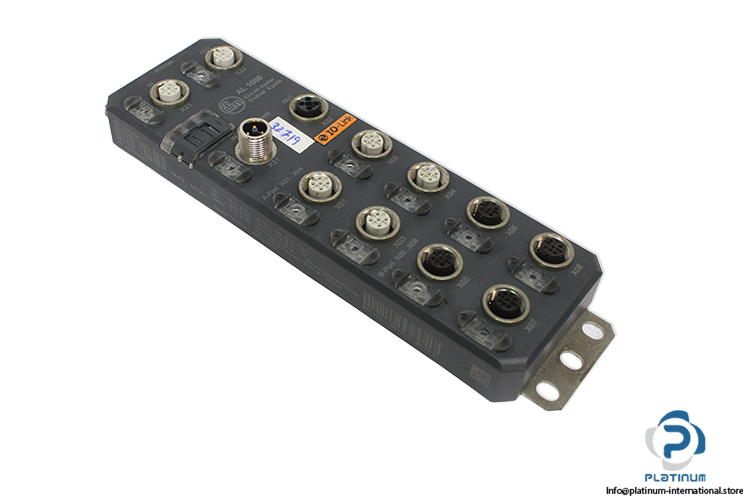

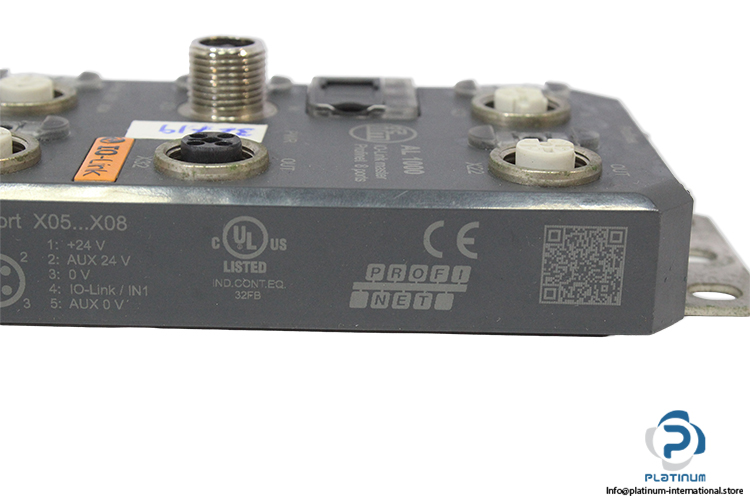

Ifm Al 1000 Input-Output-Link Master
Used
In stock1 unitReady to ship
IO-Link Master With PROFINET Interface IFM AL1000 IO-Link master designed for field applications, industrial Ethernet communication, configurable I/O management, and reliable automation system integration.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

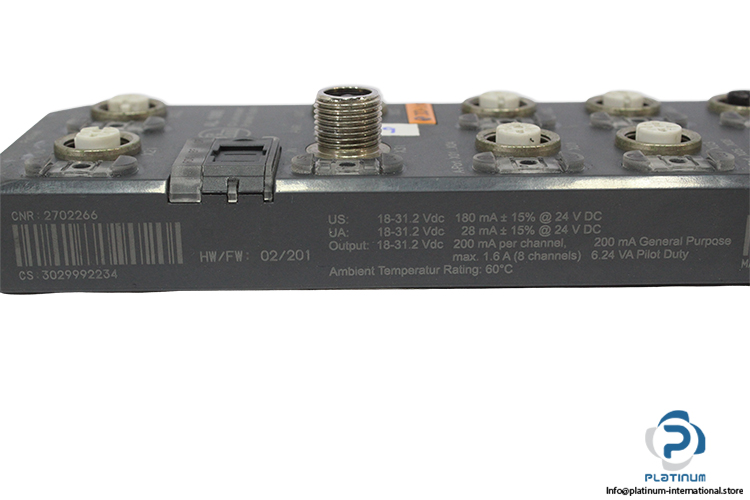

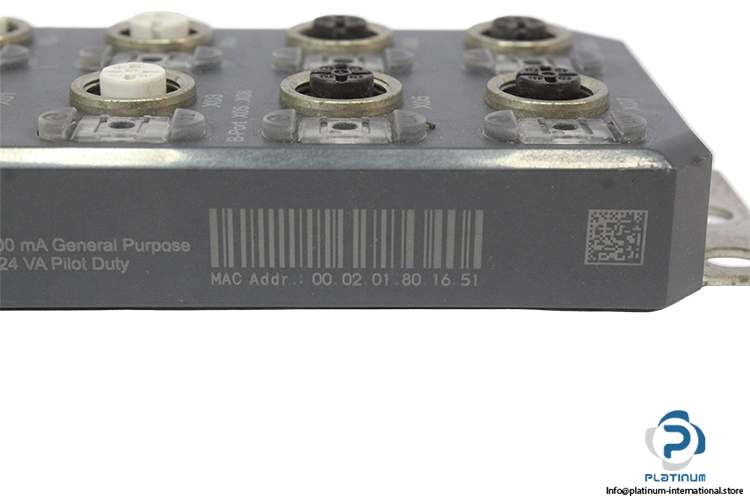

| MAC Addr . | 00.02.0180.16.51 |
| HW/FW | 02/201 |
| CS | 3029992234 |
| C NR | 2702266 |
| Application | I/O modules for field applications |
| Loop-through function | power supply; fieldbus interface |
| Operating voltage[V] | 18...31.2 DC; (US) |
| Protection class | III |
| Additional voltage supply[V] | 18...31.2 DC; (UA) |
| Current rating per port[A] | 1.6/0.2 |
| Total number of inputs and outputs | 12; (configurable) |
| Number of digital inputs | 12; (IO-Link Port Class A: 4 x 2; IO-Link Port Class B: 4 x 1) |
| Switching level high, inputs [V] | 15...30 |
| Switching level low, inputs [V] | -3...5 |
| Digital inputs protected against short circuits, inputs | yes |
| Number of inputs and outputs | Number of digital inputs: 12; Number of digital outputs: 8 |
| Number of digital outputs | 8; (IO-Link Port Class A: 4 x 1; IO-Link Port Class B: 4 x 1) |
| Max. current load per output[mA] | 200 |
| Short-circuit proof | yes |
| Actuator supply outputs | 24 V DC |
| Communication interface | Ethernet; IO-Link |
| Ethernet – PROFINET ,Protocol | PROFINET |
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| Number of ports class A | 4 |
| Number of ports class B | 4 |
| Ambient temperature[°C] | -25...60 |
| Protection | IP 65; IP 67 |
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] | 212 x 60 x 30.5 |
| Materials | housing: PA; socket: brass nickel-plated |
| Condition | Used |
| SKU | 1099200 |
| Weight | 0,53 |
