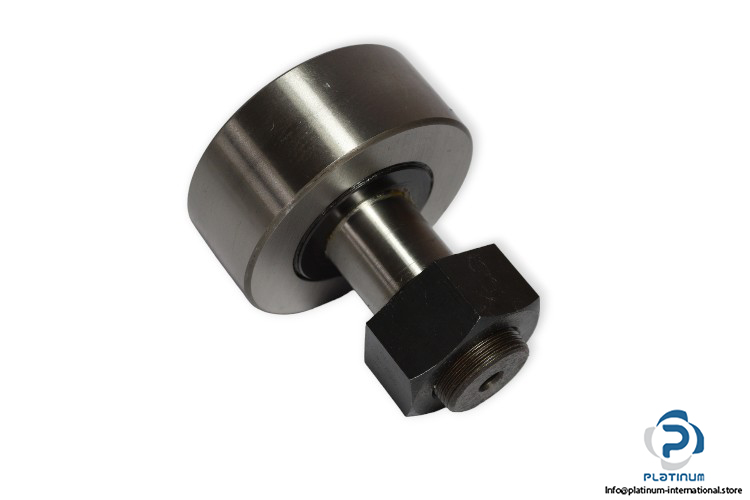

IKO CF 30-1UURA Stud Type Track Roller

Manufacturer: IKO
Type: Standard Type Cam Followers With cage type
Model: CF 30-1 UU RA

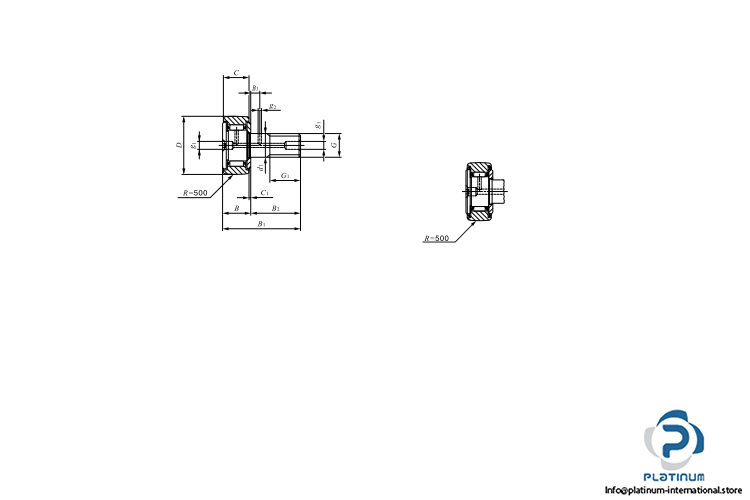

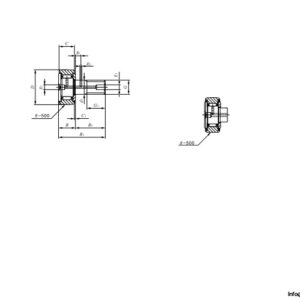

Dimensions
Outside diameter D: 85 mm
Stud diameter d1: 30 mm
Total length B₁: 100 mm
Width outer ring C: 35 mm
Thread stud G: M30X1.5
B: 37 max
rs min: 1
C1: 1 mm
Basic load ratings:
Dynamic C: 45400 N
Static C₀: 85100 N
Maximum tightening torque: 438 Nm
Maximum allowable static load: 85100 N
Roller guide method: With cage type
sealing: UU, with Seal Type incorporates seals in the narrow clearances
Stud head shape type: With screwdriver slot
Shape of outer ring outside surface: R, With crowned outer ring
