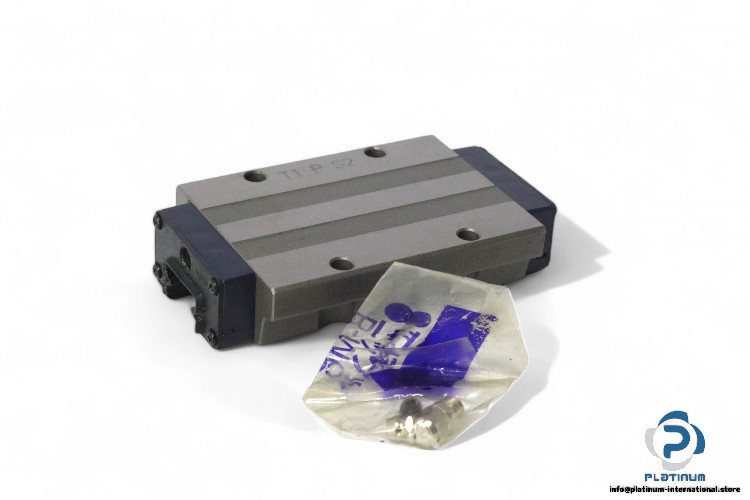

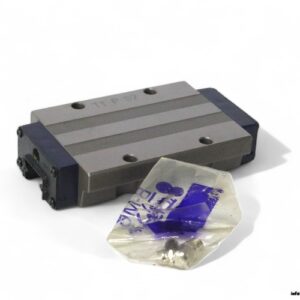

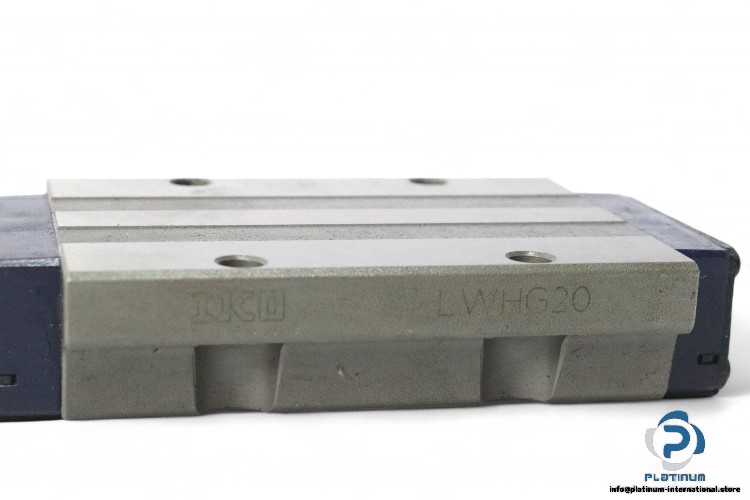

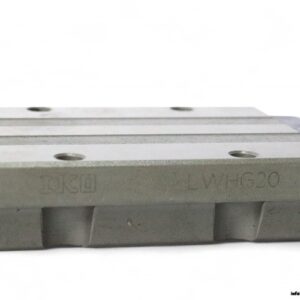

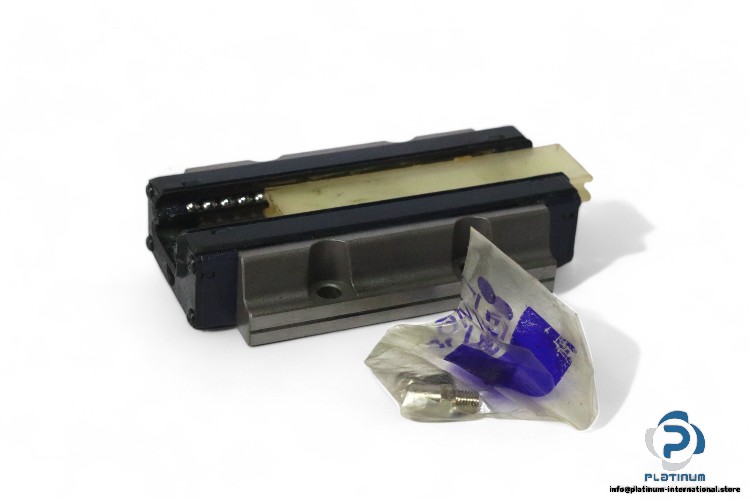

IKO LWHG20 Linear Guideway Block

Manufacturer: IKO
Type: LINEAR GUIDEWAY BLOCK
Model: LWHG 20

Size: 20

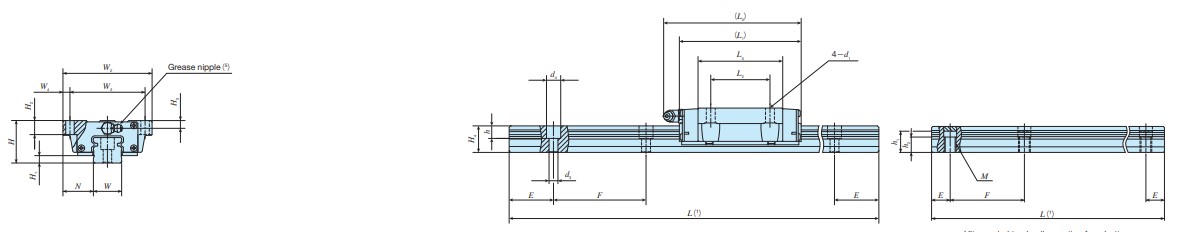

Dimensions
Total Height H: 30 mm
Block Width W₂: 63 mm
Block Length L₁: 112 mm
Block height: 25 mm
W₃: 53 mm
L₂: 40 mm
Basic Load Ratings:
Dynamic C: 24 100 N
Static C₀: 31 700 N
Static moment rating:
T₀: 349 Nm
X axis T_x: 421 Nm
Y axis T_y: 421 Nm
Series: LWH , mounting from bottom
Block Type: Flange type, mounting from bottom
Length of slide unit: G, High rigidity long
Mounting Bolt For Track Rail: M5×18
