IKO LWHT20C1BT2HS2 Linear Guideway Block
New
In stock1 unitReady to ship
99,99$
Linear Guideway Block
The IKO LWHT 20 C1 B T2 H S2 flange-type linear guideway block offers high accuracy, rigidity, and smooth motion for CNC machines and industrial automation applications.20AccuracyAutomationBbearingBlockC1CNCComponentEquipmentFlangeGuidewayHHighIKOIndustrialLinearLwhtMachineryMotionPrecisionS2SlideT2Type
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

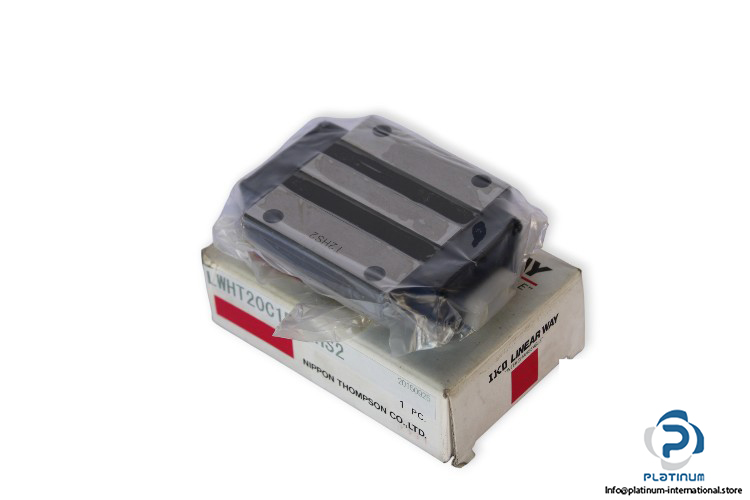

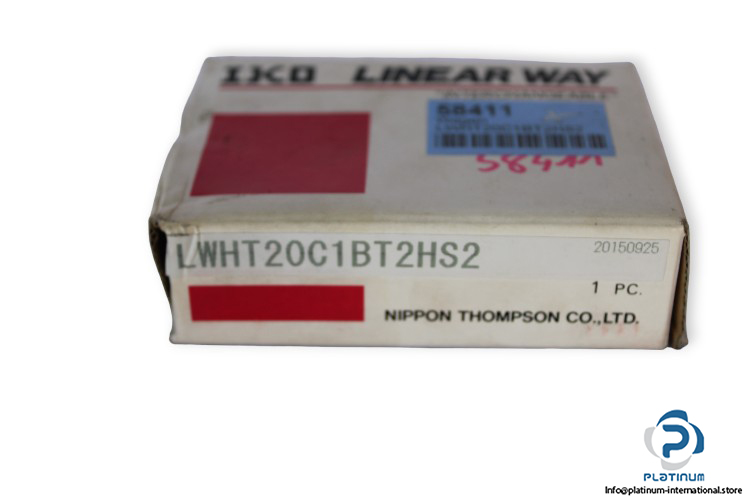

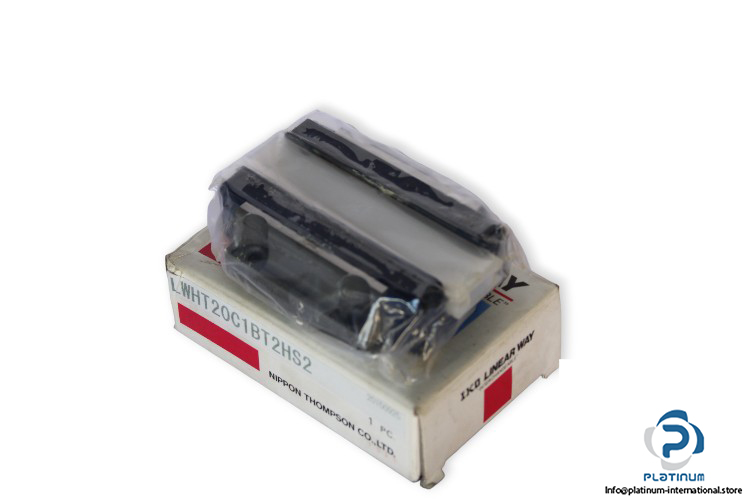

IKO LWHT 20 C1 B T2 H S2 Linear Guideway Block
The IKO LWHT 20 C1 B T2 H S2 Linear Guideway Block is a precision-engineered component designed to provide smooth, accurate, and durable linear motion for industrial machinery. With a flange-type block and medium preload, this model offers high rigidity and exceptional stability, suitable for CNC machines, automation systems, and precision motion equipment.
Manufacturer: IKO
Type: Linear Guideway Block
MNR: LWHT 20 C1 B T2 H S2
| Block Type | Flange Type |
| Size | 20 |
| Number of Slide Units | C1, 1 |
| Preload Amount | T2, Medium Preload |
| Accuracy Class | H, High |
| Interchangeable Code | S2 |
| Basic Dynamic Load Rating (C) | 18 100 N |
| Basic Static Load Rating (C0) | 21 100 N |
| Static Moment Rating X-Axis (T0) | 232 Nm |
| Static Moment Rating Y-Axis (TY) | 195 Nm |
| Static Moment Rating Z-Axis (TX) | 1 150 Nm |
| Total Height (H) | 30 mm |
| H1 | 5 mm |
| Block Width (W2) | 63 mm |
| Block Length (L1) | 83 mm |
| W3 | 53 mm |
| L2 | 40 mm |
