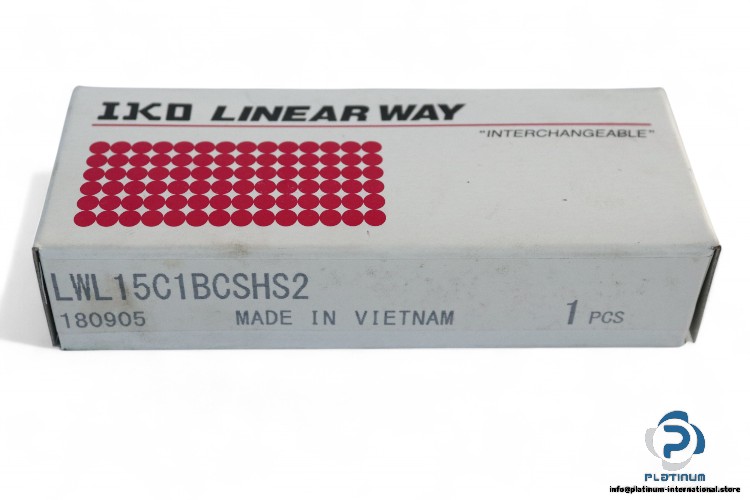

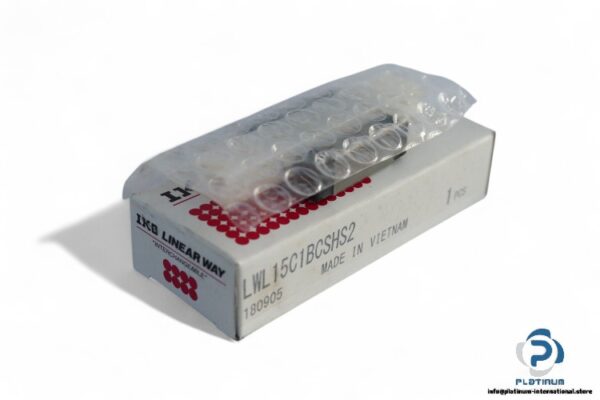

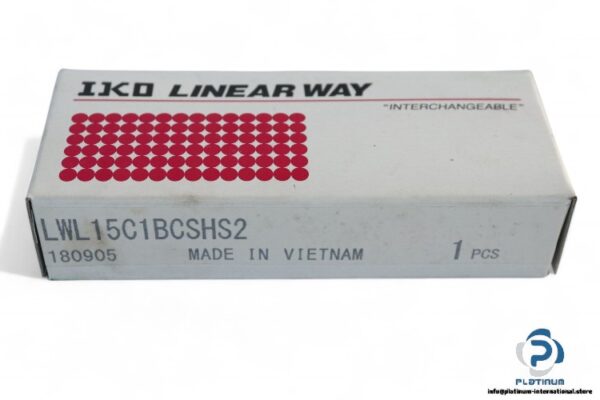

IKO LWL15C1BCSHS2 Linear Guideway Block

Manufacturer: IKO
Type: LINEAR GUIDEWAY BLOCK
Model: LWL 15 C1 B CS H S2

Size of rolling guide: 15 mm

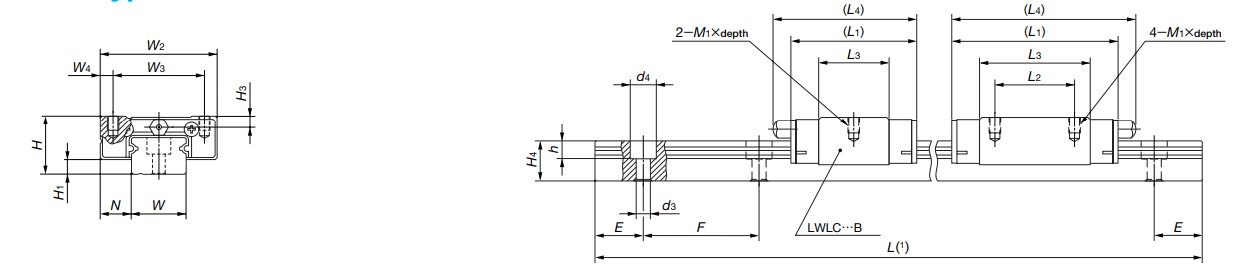

Dimensions
Total Height H: 16 mm
Block Height (H-H1): 12 mm
Block Width W₂: 32 mm
Block Length L₁: 42 mm
W₃: 25 mm
L₂: 20 mm
Basic Load Ratings:
Dynamic C: 4980 N
Static C₀: 6490 N
Block Type: Square Type
Accuracy class: H, High
Number of slide units: C1, 1
Model code: LWL
Material: CS, High carbon steel made
Interchangeable code: S2, interchangeable specification
