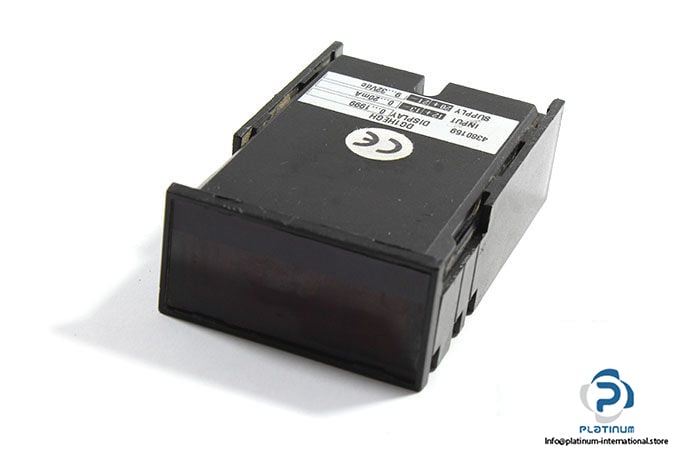

IME DG1HEGH Digital Meter

Manufacturer: IME

Type: Digital Current Meter

Model: DG1HEGH

Input: 0 … 20 mA

Voltage Supply: 9 … 32 V dc

Rated Value Uaux.: 24 Vdc

Type Of Display: 7 Segments, Red Leds

Max. Display: -1999 … 1999

Front Frame: 48×24 mm

Depth: 88 mm

Max. Power Dissipation: 2 W

Protection Degree: IP50

Pollution Degree: 2

Housing Material: Self-extinguishing Polycarbonate

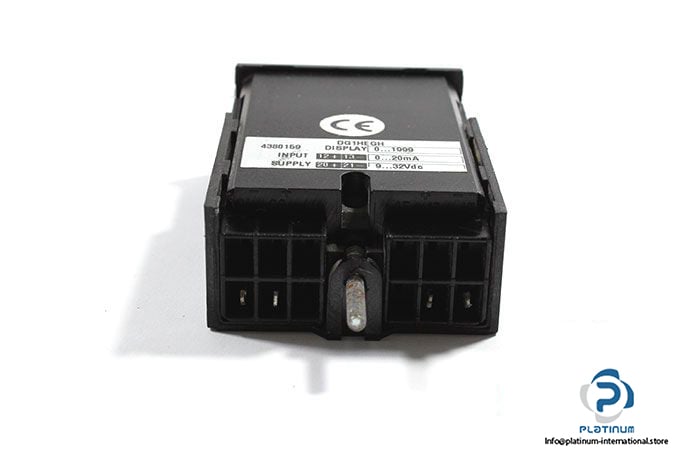

Connection: Faston 3×0.8 mm

Temperature: -5 … 55 °C

Weight: 0.060 kg
