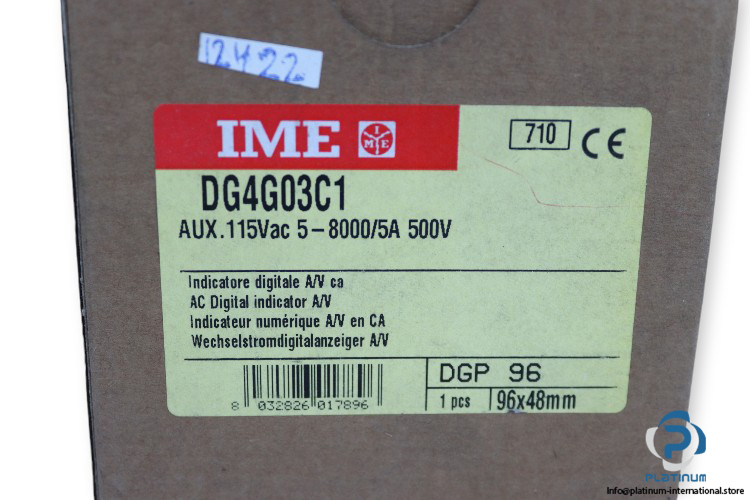

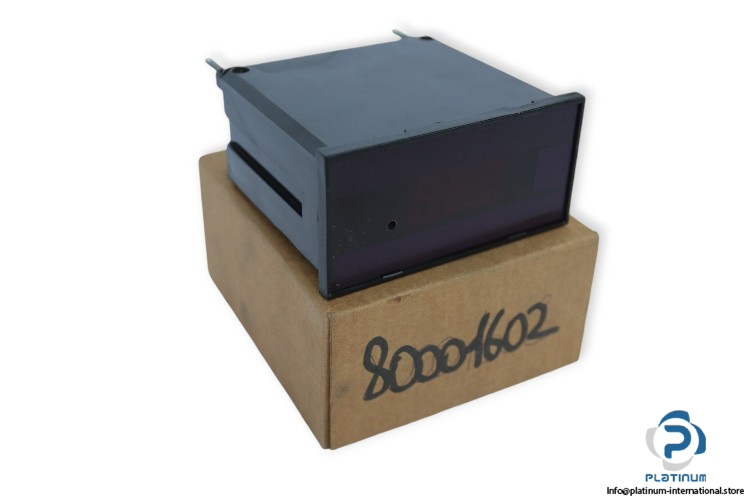

IME DG4G03C1 Digital Meter

Manufacturer: Ime
Type: Alternating voltage or current digital meter
Model: DG4G03C1

Aux. Supply Voltage: 115 V AC
Rated Input current In: 5 A
Rated Input voltage Un: 500 V
Programmable primary range: 5 … 8000 A (38 ranges)

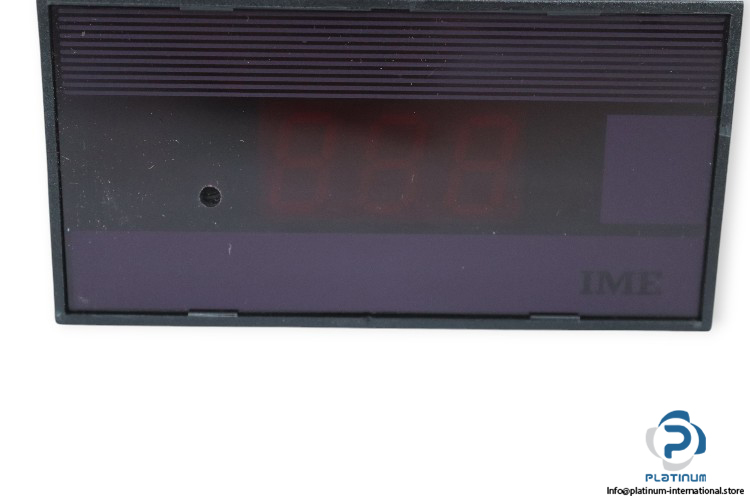

Type of display: 7 segments, red LED’s
Digit height: 14 mm
Measuring range: 10 … 600 V
Rated frequency fn: 50 Hz
Working frequency: 47 … 420 Hz
Connections: fast-Ons 6,3×0,8mm
Housing material: self-extinguishing polycarbonate
Protection degree: IP50 (front frame) IP20 (terminals)
Front frame Dimensions: 96 x 48 mm
Depth: 103 mm
