IME TABB50C100 Current Transformer
IME Current Transformer (Model: TABB50C100, alternative model: TAIBB) offers a primary rated current of 100 A and a secondary rated current of 5 A. It has a rated power of 1.5/2.5 VA, accuracy class of 0.5/1, and operates within the temperature range of -25 to 50 °C.

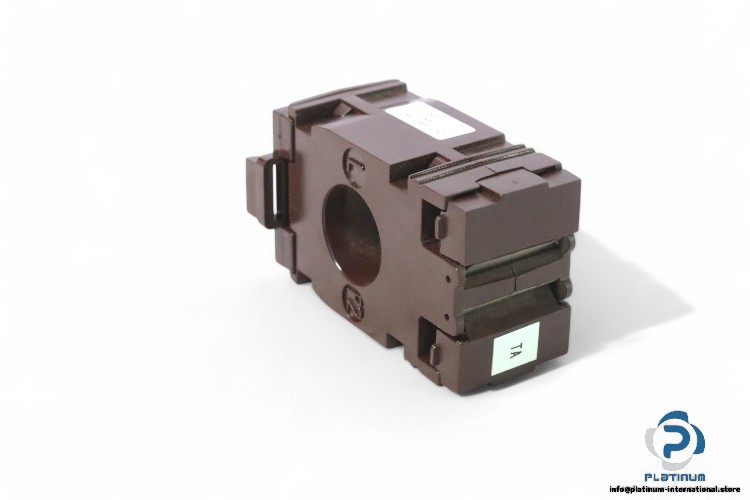

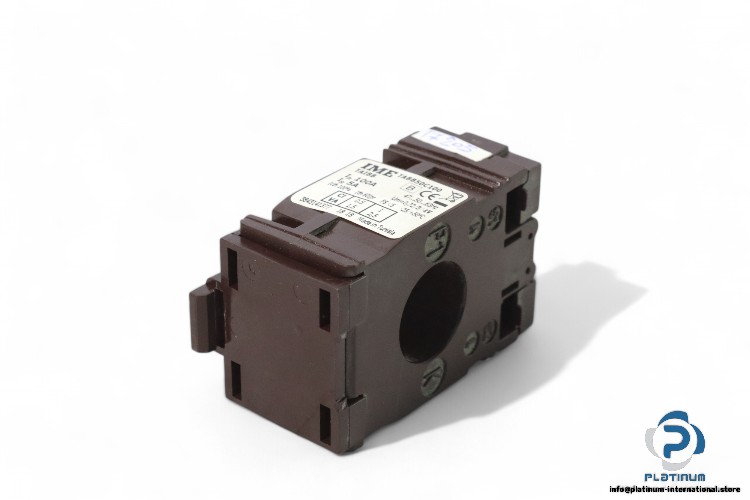

IME Current Transformer (Model: TABB50C100)
The IME Current Transformer (Model: TABB50C100, alternative model: TAIBB) is a high-quality transformer designed for current measurement applications. It features a primary rated current of 100 A and a secondary rated current of 5 A, providing reliable current measurement for a variety of systems. The transformer is designed with an accuracy class of 0.5/1, ensuring precise measurements. With a rated power of 1.5/2.5 VA, this transformer is ideal for monitoring current levels in industrial and electrical applications. It is rated for voltages up to 3 kV and operates efficiently at a frequency range of 47-63 Hz. The transformer is housed in a durable IP40-rated enclosure, offering protection in harsh environments. It operates within a temperature range of -25 to 50 °C and has a compact design with a diameter of 21 mm and dimensions of 16 x 12.5 mm.
- Manufacturer: IME
- Type: Current Transformer
- Model: TABB50C100
- Alternative Model: TAIBB
- Primary Rated Current: 100 A
- Secondary Rated Current: 5 A
- Rated Power: 1.5/2.5 VA
- Accuracy Class: 0.5/1
- Rated Voltage: 0.72/3 kV
- Rated Frequency: 47/50/63 Hz
- Protection Class: IP40
- Temperature: -25 / 50 °C
- Dimensions: 16 x 12.5 mm
- Diameter: 21 mm
