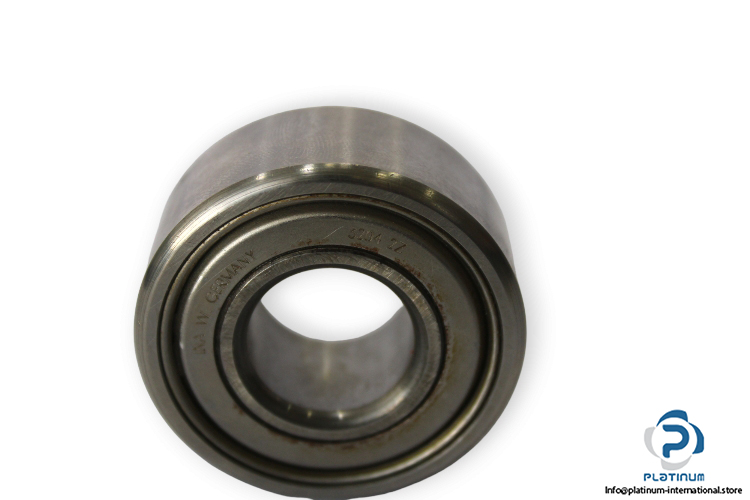

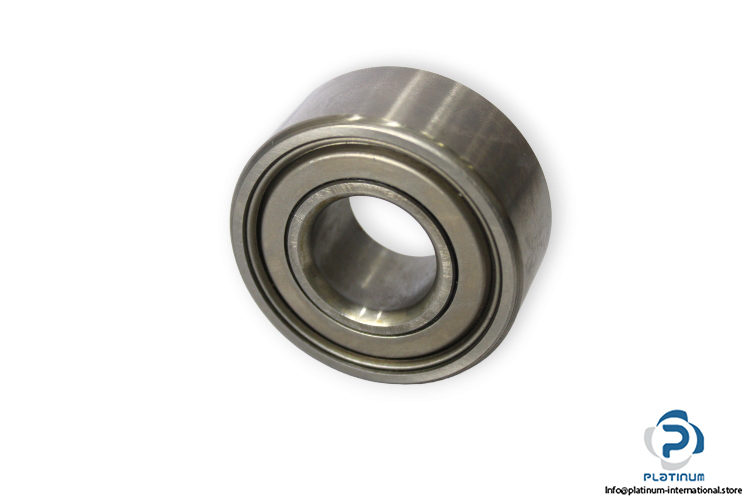

INA 3204 2Z Double ROW Angular Contact Ball Bearing
Manufacturer: Schaeffler INA
Type: Double Row Angular Contact Ball Bearing
Model: 3204-2Z
Dimensions
Bore Diameter d: 20 mm
Outer diameter D: 47 mm
Width B: 20.6 mm
Contact angle: 30 °
Basic load ratings, radial:
Dynamic Cr: 20600 N
Static C0r: 12900 N
Fatigue load limit Cur: 900 N
Limiting speed: 12100 rpm
Reference speed: 14700 rpm
Cage: steel sheet metal
Sealing: 2Z, Non-contact shield on both sides
