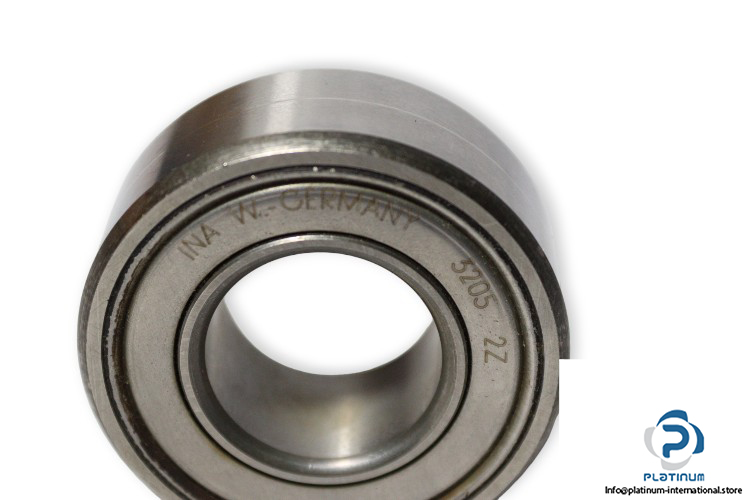

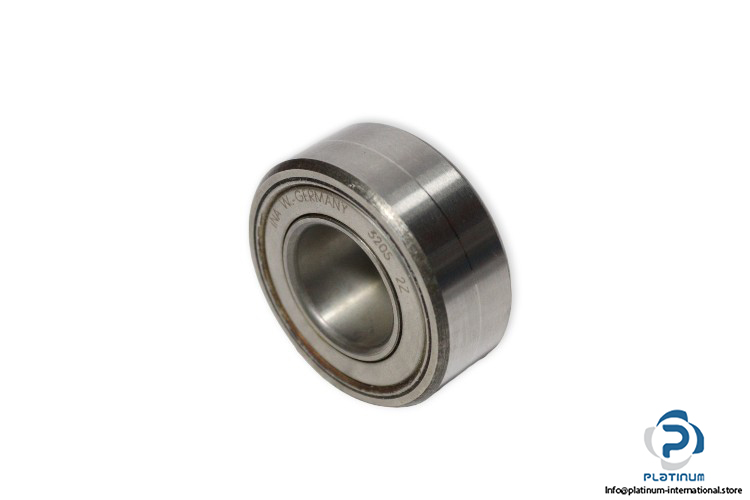

Name: INA 3205-2Z DOUBLE ROW ANGULAR CONTACT BALL BEARING
SKU: 1030467
Availability: LimitedAvailability

Manufacturer: Schaeffler INA
Type: Double Row Angular Contact Ball Bearing
Model: 3205 2Z

Dimensions
Bore Diameter d: 25 mm
Outer diameter D: 52 mm
Width B: 20.6 mm
Basic dynamic load rating, radial: 22000 N
Basic static load rating, radial: 15200 N
Fatigue load limit, radial: 1050 N
Sealing: 2Z, non-contact shield on both sides

Specification	Value
Weight	0,17 kg
Condition	Used
Type of Product	Double Row Angular Contact Ball Bearing
Shelf No.	240321

Price	On Request
Stock	1 In stock
Category	Angular Contact
Condition	Used
SKU	1030467

Weight	0,17 kg
Condition	Used
Type of Product	Double Row Angular Contact Ball Bearing
Shelf No.	240321

INA 3205-2Z Double ROW Angular Contact Ball Bearing
