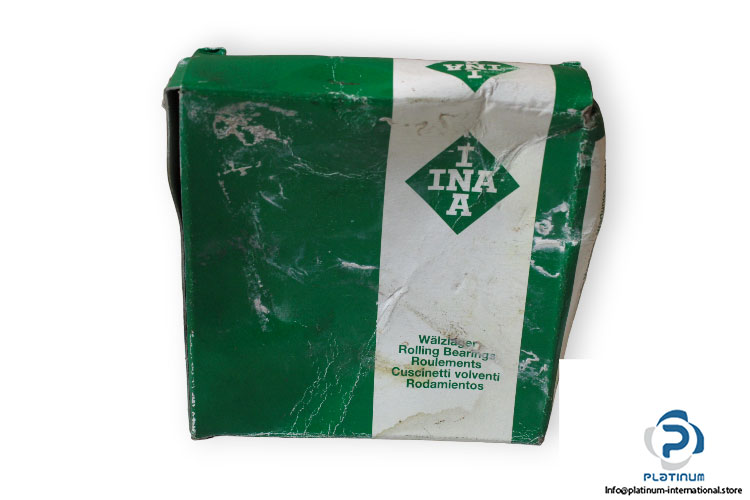

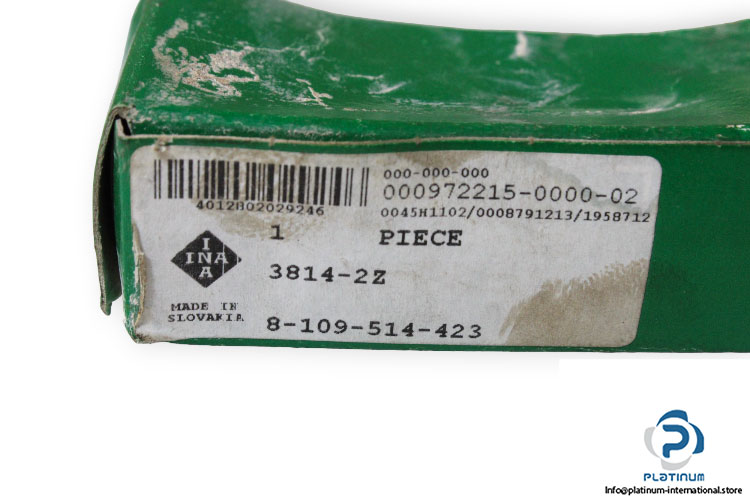

INA 3814-2Z Angular Contact Ball Bearing

Manufacturer: Schaeffler INA
Type: Angular contact ball bearing
Model: 3814 2Z

Dimensions:
Bore Diameter d: 70 mm
Outer diameter D: 90 mm
Width: 15 mm
Dynamic load rating: 18800 N
Static load rating: 23200 N
Fatigue load limit: 1310 N
Limiting speed: 5700 RPM
Reference speed: 4050 RPM
Cage material: solid cage made of glass-fiber reinforced polyamid PA66
Sealing: Non-contact shield on both sides
