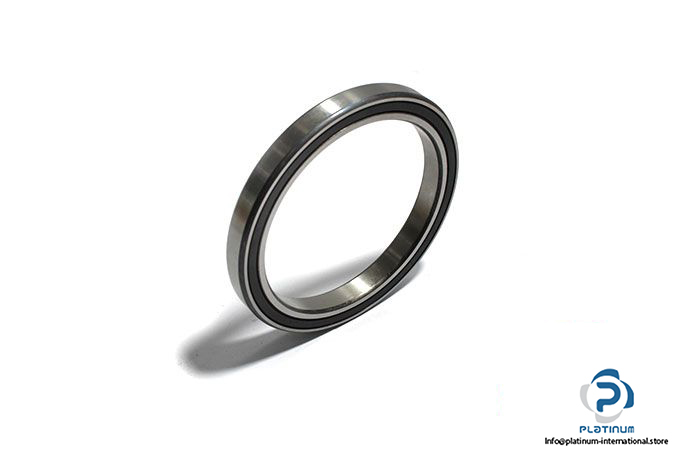

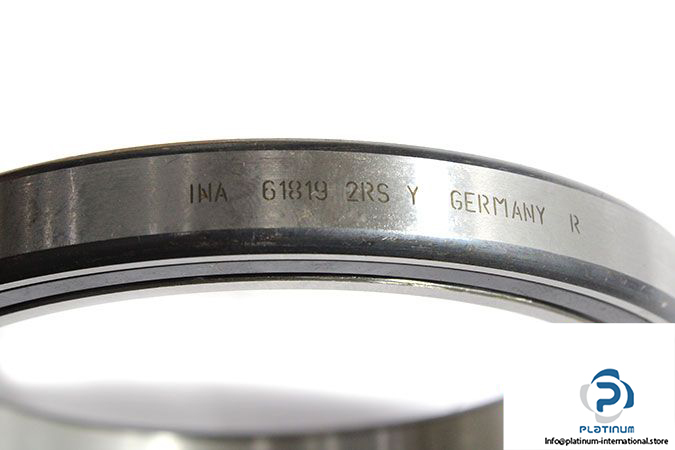

INA 61819 2RS Y Deep Groove Ball Bearing

Manufacturer: Schaeffler INA

Type: Deep Groove Ball Bearing

Model: 61819-2RS-Y

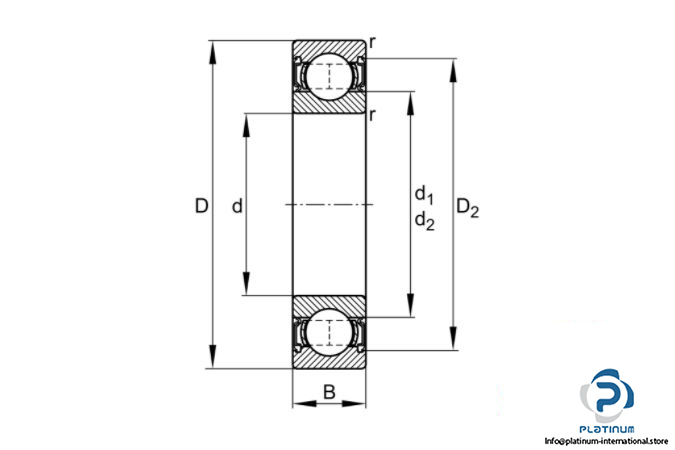

Dimensions:

Bore Diameter d: 95 mm

Outer diameter D: 120 mm

Width B: 13 mm

Basic load ratings:

Dynamic C_r: 21000 N

Static C_0r: 21300 N

Fatigue load rating C_ur: 1230 N

Limiting speed: 2600 rpm

Cage: Brass sheet metal

Sealing: Contact seal on both sides

Temperature range: -20 … +100 °C

Weight: 0.32 kg
