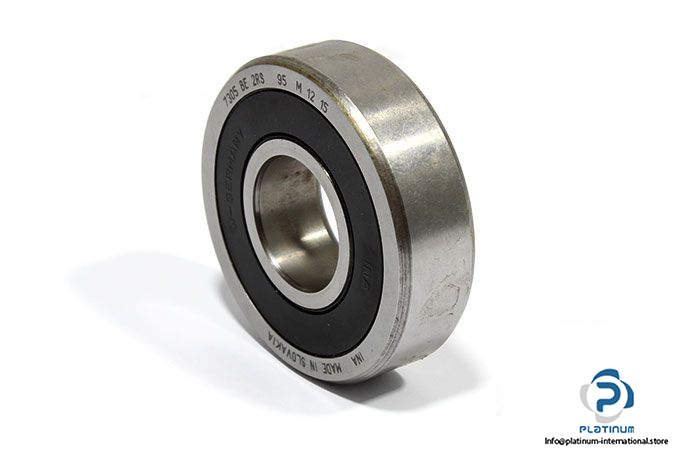

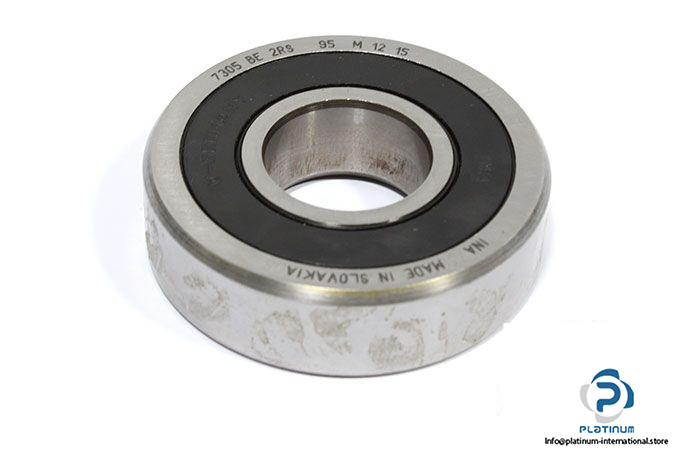

INA 7305 BE 2RS Angular Contact Ball Bearing
Manufacturer: Schaeffler INA
Type: Angular Contact Ball Bearing

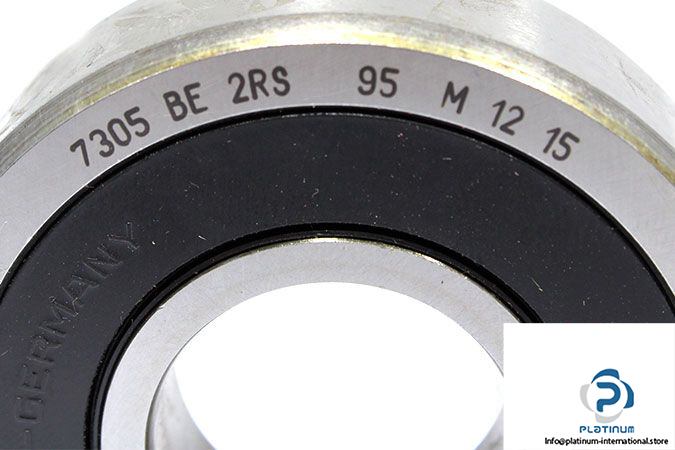

Model: 7305-B-2RS-TVP

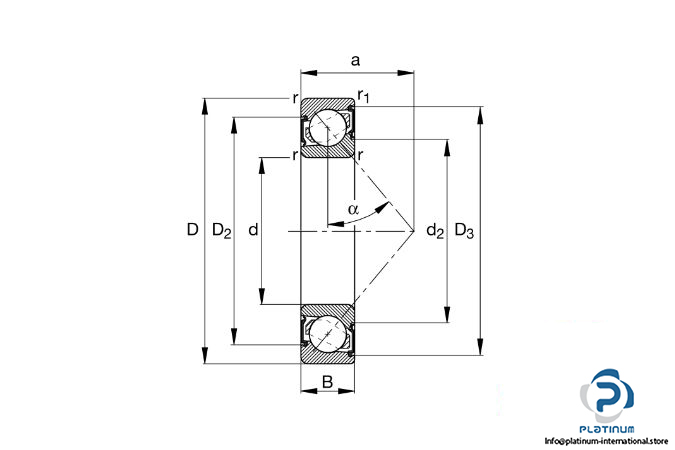

Dimensions
Bore Diameter d: 25 mm
Outer diameter D: 62 mm
Width B: 17 mm
Contact angle α: 40 °
Basic load ratings:
Dynamic Cr: 29000 N
Static C0r: 16800 N
Limiting speed: 6700 rpm
Sealing: Contact seal on both sides
Cage: Plastic retainer
Operating Temperature: -20 … +100 °C
Weight: 0.23 kg
