INA BK2018.RS Drawn CUP Needle Roller Bearing
New
In stock1 unitReady to ship
Drawn Cup Needle Roller Bearing
The INA BK2018 RS bearing features a 20 mm under roller diameter and 26 mm outer diameter, offering high load capacity, RS sealing, and reliable performance for various industrial applications.2026bearingBK2018CapacityCompactcupdiameterDrawnfatigueHighInaIndustrialLimitLoadmmNeedleOuterRollerRSSealingUnderUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

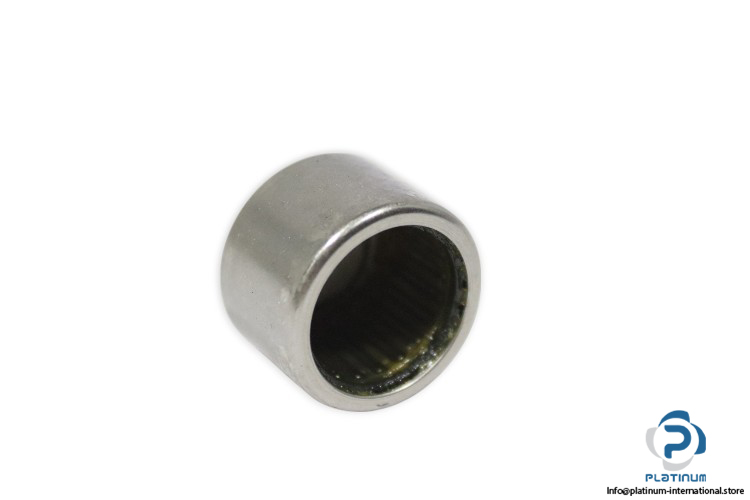

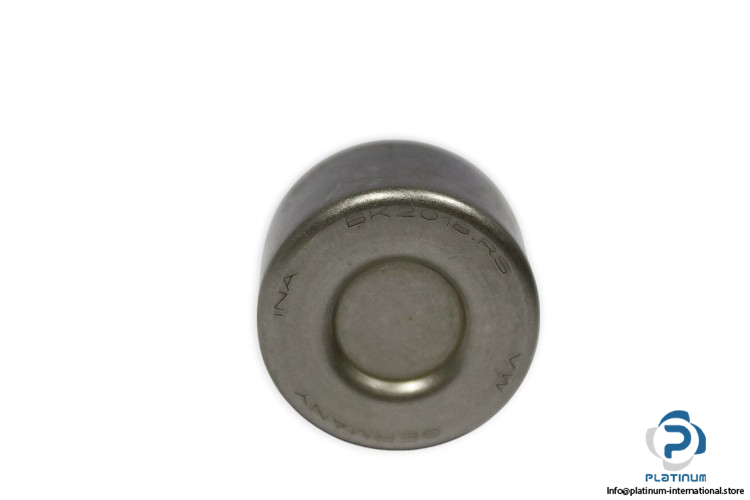

INA BK2018 RS Drawn Cup Needle Roller Bearing
The INA BK2018 RS Drawn Cup Needle Roller Bearing is designed for applications requiring high load capacity in a compact size. With a contact seal on one side, this bearing provides excellent protection against contamination while offering reliable performance in various industrial applications.
Manufacturer: INA
Type: DRAWN CUP NEEDLE ROLLER BEARING
Model: BK2018 RS
Basic Load Ratings:
Other Features:
This drawn cup needle roller bearing offers high performance in a compact design, making it suitable for applications with limited space or high load requirements.
| Under Roller Diameter (Fw) | 20 mm |
| Outer Diameter (D) | 26 mm |
| Width, Outer Ring (C) | 18 mm |
| Minimum Chamfer Dimension (rmin) | 0.8 mm |
| Dynamic Load Rating (C) | 12700 N |
| Static Load Rating (C0) | 20100 N |
| Fatigue Load Limit (Pu) | 2550 N |
| Limiting Speed | 7600 rpm |
| Sealing | RS, Contact seal on one side |
