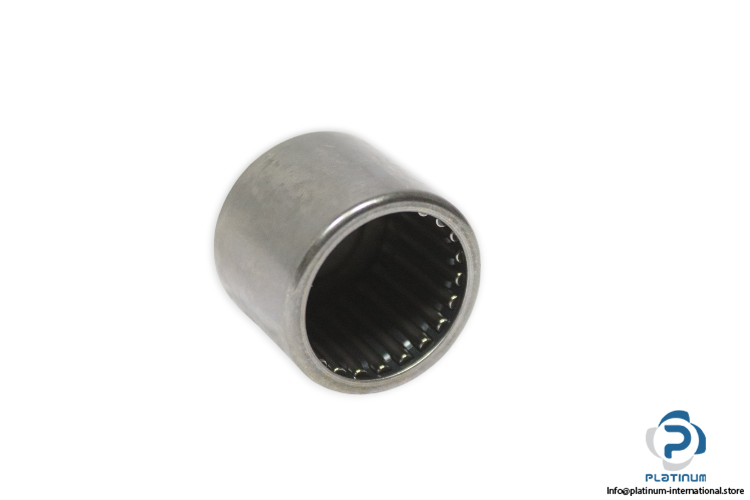

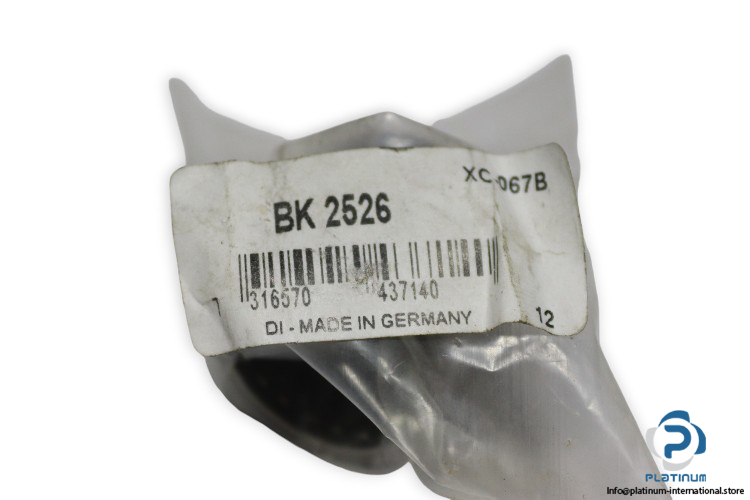

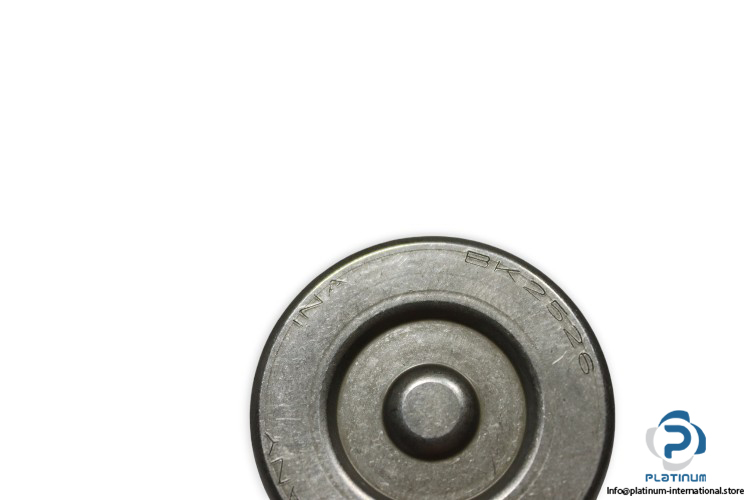

INA BK2526 Drawn CUP Needle Roller Bearing

Manufacturer: INA
Type: DRAWN CUP NEEDLE ROLLER BEARING WITH CLOSED END
Model: BK 2526

Dimensions
Under roller diameter F_w: 25 mm
Outer diameter D: 32 mm
Width, outer ring C: 26 mm
Minimum chamfer dimension r_min: 0.8 mm
Basic load ratings:
Dynamic C: 25 500 N
Static C₀: 45 000 N
Fatigue load limit P_u: 6 200 N
Limiting speed: 10 200 rpm
Reference speed: 7 300 rpm
