INA E20 Kllh Radial Insert Ball Bearing
New
In stock5 unitsReady to ship
Radial Insert Ball Bearing
High-performance bearing with 20 mm bore, 47 mm outer diameter, and 13,600 N dynamic load rating. Designed for stable operation and long service life in industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

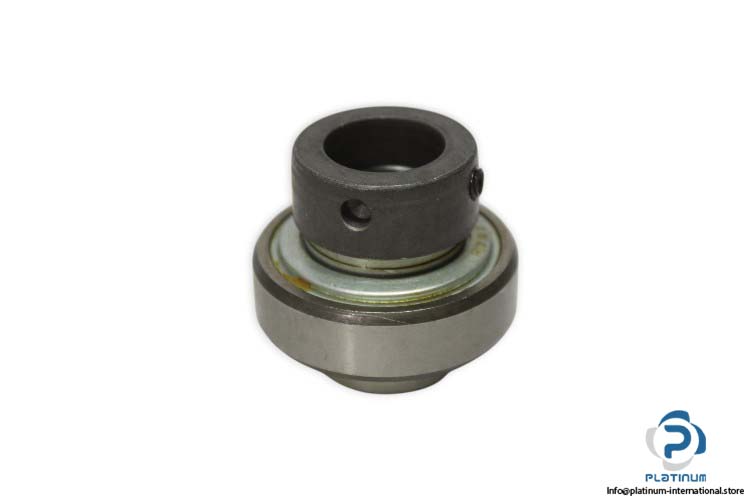

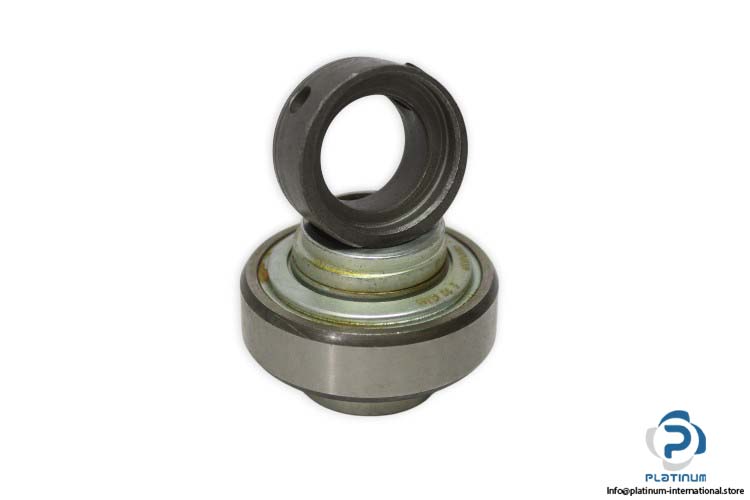

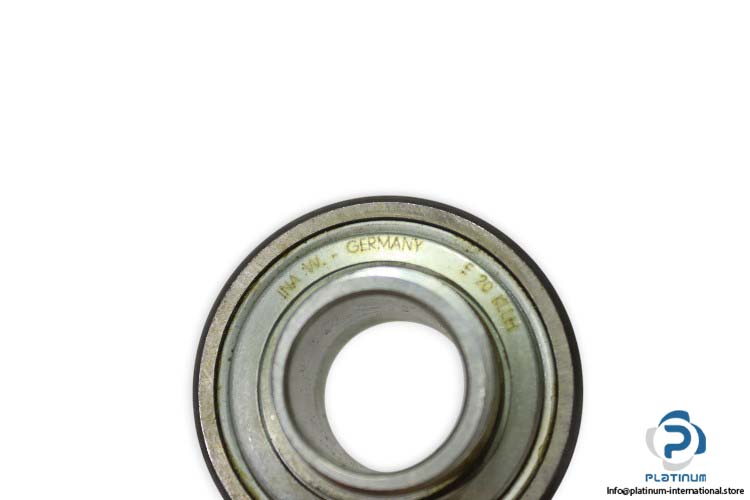

INA E20 KLLH Radial Insert Ball Bearing
The INA E20 KLLH is a high-quality radial insert ball bearing engineered for reliable performance and durability in demanding industrial applications.
Manufacturer: INA
Type: Radial Insert Ball Bearing
Model: E20 KLLH

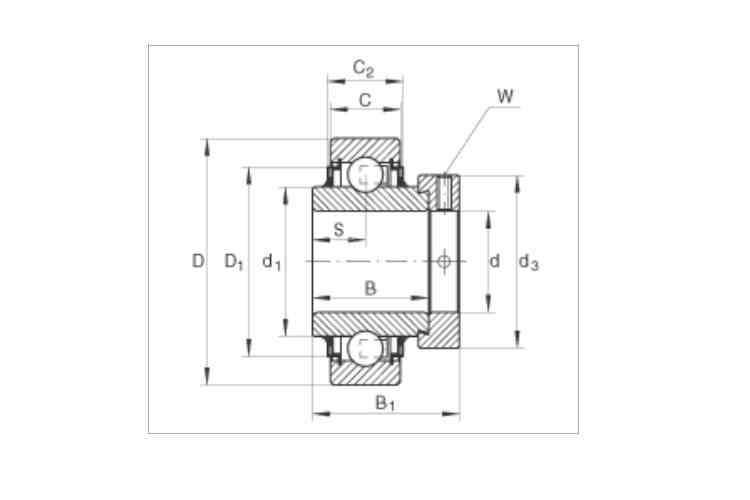

| Bore Diameter (d) | 20 mm |
| Outer Diameter (D) | 47 mm |
| Width (B) | 43.7 mm |
| Width, Outer Ring (C) | 14 mm |
| Basic Dynamic Load Rating (Cr) | 13,600 N |
| Basic Static Load Rating (C0r) | 6,600 N |
| Fatigue Load Rating | 335 N |
