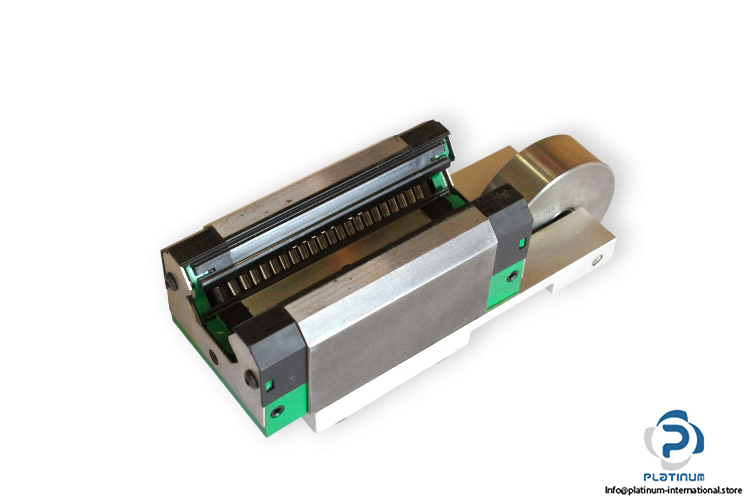

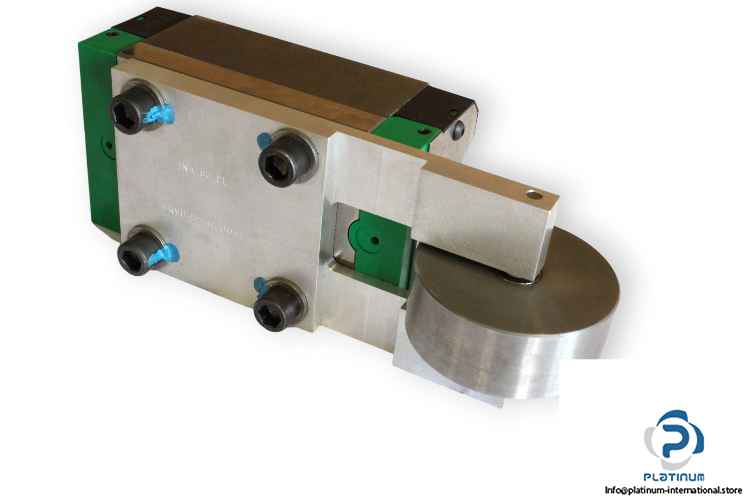

INA Ervu 35 Rolling-IN Device AND Retaining Plate With Roller Bearing

Manufacturer: Schaeffler INA
Type:  Mounting device for covering strip, clip fit, for linear recirculating roller bearing and guideway assembly

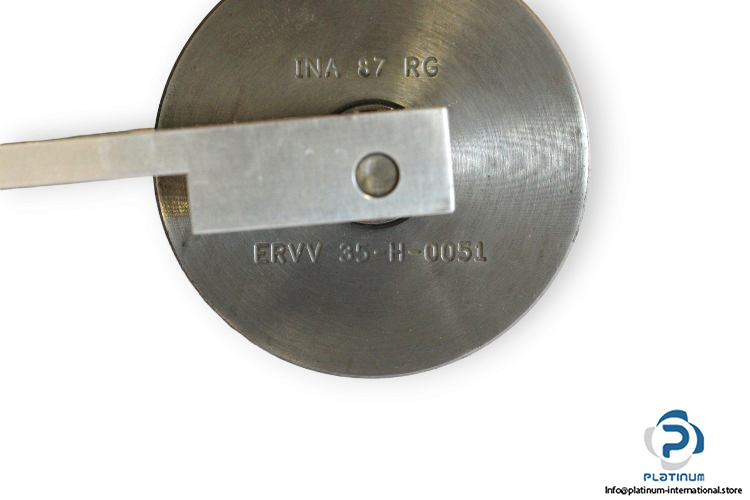

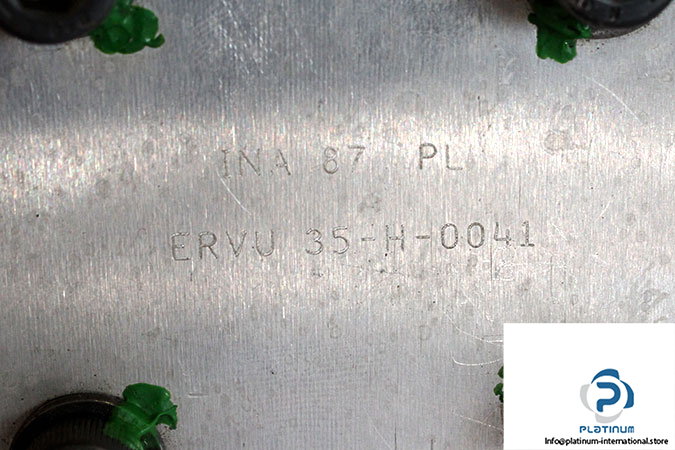

Model: ERVU35 , ERVU 35-H-0041 , ERVV 35-H-0051

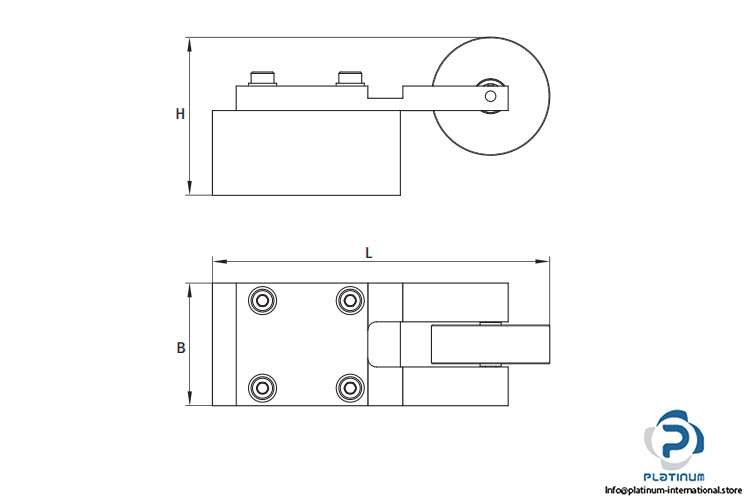

Dimensions:
Length L: 198.8 mm
Width B: 70 mm
Height H: 90.1 mm
Carriage height: 48.5 mm
Carriage length: 123 mm
Basic Load Ratings:
Dynamic C: 59 kN
Static C₀: 134 kN
