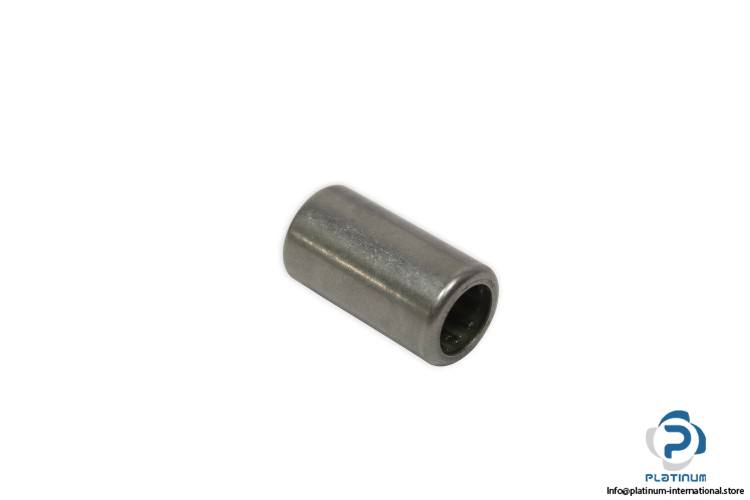

INA HFL 0822 Drawn Cup Roller Clutch
The INA HFL 0822 drawn cup roller clutch is a compact overrunning clutch designed to transmit torque in one direction while allowing free rotation in the opposite direction. Its space-saving design makes it suitable for precise mechanical and industrial applications.
Manufacturer: INA / Schaeffler
Type: Drawn Cup Roller Clutch
Model: HFL 0822
| Diameter Under Rollers (Fw) | 8 mm |
| Outer Diameter (D) | 12 mm |
| Outer Ring Width (C) | 22 mm |
| Minimum Chamfer Dimension (rmin) | 0.3 mm |
| Fatigue Load Limit, Radial | 560 N |
| Basic Dynamic Load Rating, Radial | 3,650 N |
| Basic Static Load Rating, Radial | 3,950 N |
| Permissible Torque | 3.15 Nm |
| Limiting Speed, Rotating Shaft | 12,000 rpm |
| Limiting Speed, Rotating Outer Ring | 17,000 rpm |
| Operating Temperature Range | -10 to 70 °C |
