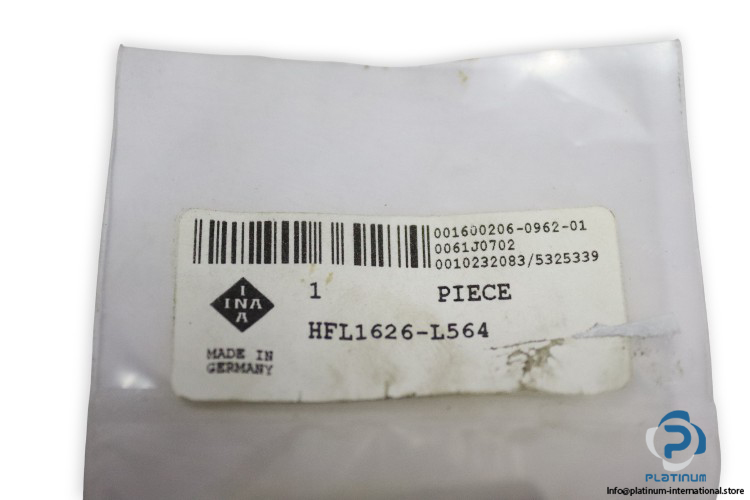

INA HFL1626-L564 Drawn CUP Roller Clutch
New
In stock1 unitReady to ship
Drawn Cup Roller Clutch
INA HFL1626-L564 drawn cup roller clutch with 20.5 Nm permissible torque, grease lubrication, and high radial load capacity for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
INA HFL1626-L564 Drawn Cup Roller Clutch
The INA HFL1626-L564 is a precision drawn cup roller clutch designed to transmit torque in one direction while allowing free rotation in the opposite direction. It is engineered for compact installations requiring high load capacity, reliable engagement, and consistent performance in industrial applications.
Manufacturer: INA / Schaeffler
Type: Drawn Cup Roller Clutch
Model: HFL1626-L564
| Diameter Under Rollers (Fw) | 16 mm |
| Outer Diameter (D) | 22 mm |
| Width Outer Ring (C) | 26 mm |
| Minimum Chamfer Dimension (rmin) | 0.3 mm |
| Permissible Torque | 20.5 Nm |
| Basic Dynamic Load Rating, Radial | 7400 N |
| Basic Static Load Rating, Radial | 9000 N |
| Fatigue Load Limit, Radial | 1270 N |
| Limiting Speed for Rotating Shaft | 8500 rpm |
| Limiting Speed for Rotating Outer Ring | 7500 rpm |
| Lubricant | L564, Grease |
| Operating Temperature Range | -10 to 70 °C |
