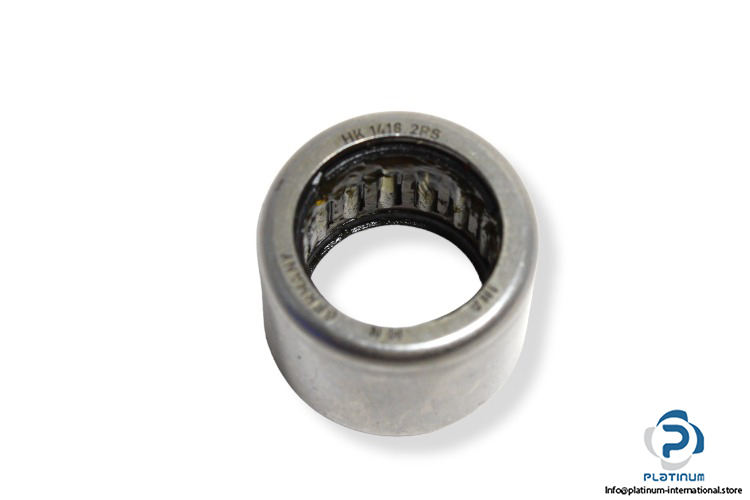

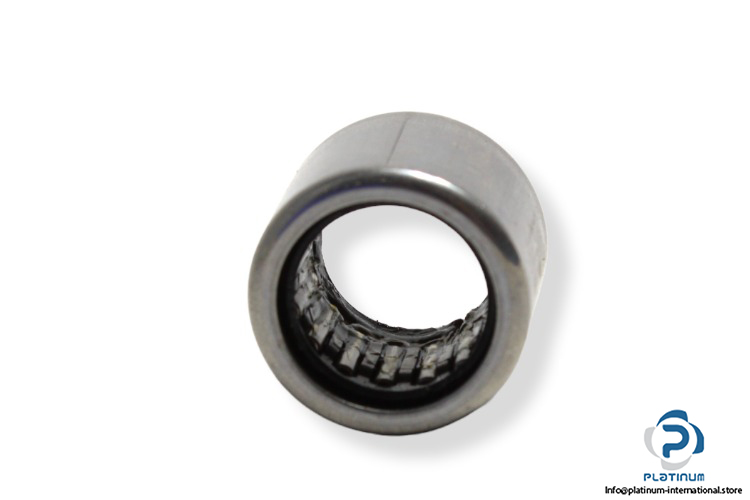

INA HK 1416 2RS Drawn CUP Needle Roller Bearing

Manufacturer: Schaeffler INA

Type: Drawn cup needle roller bearing open end

Model: HK1416 2RS

Dimensions

Diameter under rollers F_w: 14 mm

Outer diameter D: 20 mm

Width outer ring C: 16 mm

Chamfer dimension drawn cup (outer ring) r_min: 0.8 mm

Basic load ratings:

Dynamic C: 7100 N

Static C₀: 8500 N

Fatigue load limit P_u: 1030 N

Limiting speed: 10500 rpm

Limiting speed for grease lubrication: 10500 rpm

Reference speed: 15700 rpm

Sealing: 2RS, Contact Seal on Both Sides

Lubricant : L271, Grease

Operating temperature: -20 °C…100 °C
