INA HK 1612-B Drawn CUP Needle Roller Bearing
New
In stock13 unitsReady to ship
Drawn Cup Needle Roller Bearing
The INA HK1612-B Bearing features a compact design with 16 mm inner diameter, 22 mm outer diameter, and 12 mm width, offering high radial load capacity and smooth operation for limited-space applications.16x22x12bearingbearingsCompactComponentscupDrawnHigh-SpeedHK1612-BInaIndustrialNeedlePowerRollerSchaefflerTransmission
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

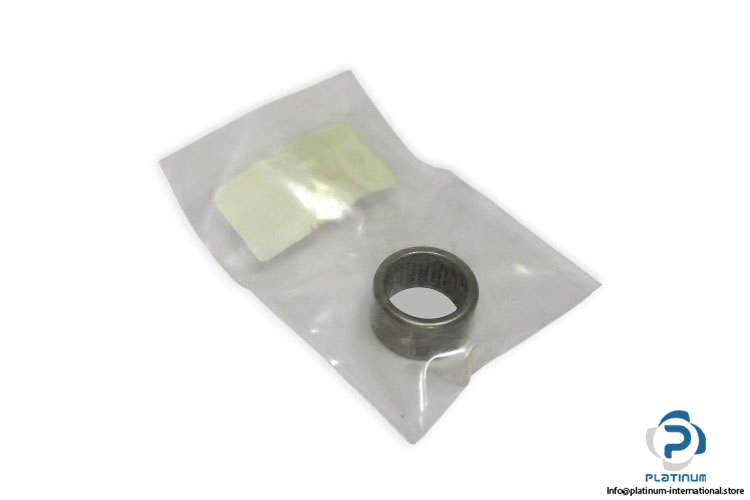

INA HK1612-B Drawn Cup Needle Roller Bearing
The INA/Schaeffler HK1612-B is a high-quality drawn cup needle roller bearing designed for compact and efficient power transmission. Its thin-walled outer ring and high load capacity make it ideal for applications with limited space while maintaining excellent performance under radial loads. Built for reliability, it operates smoothly across a wide temperature range with high-speed capability.
Manufacturer: INA/Schaeffler
Type: Drawn Cup Needle Roller Bearing
Model: HK1612-B
| Under Roller Diameter (Fw) | 16 mm |
| Outer Diameter (D) | 22 mm |
| Width Outer Ring (C) | 12 mm |
| Chamfer Dimension (rmin) | 0.8 mm |
| Dynamic Load Rating (C) | 7600 N |
| Static Load Rating (C0) | 9700 N |
| Fatigue Load Limit (Pu) | 1180 N |
| Limiting Speed | 15600 rpm |
| Limiting Speed for Grease Lubrication | 9300 rpm |
| Reference Speed | 11900 rpm |
| Operating Temperature | -30 to 140 °C |
