INA HK5025 Drawn CUP Needle Roller Bearing
New
In stock6 unitsReady to ship
Needle Roller Bearing
INA HK5025 drawn cup needle roller bearing with compact design, high radial load capacity, and reliable performance over a wide temperature range.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

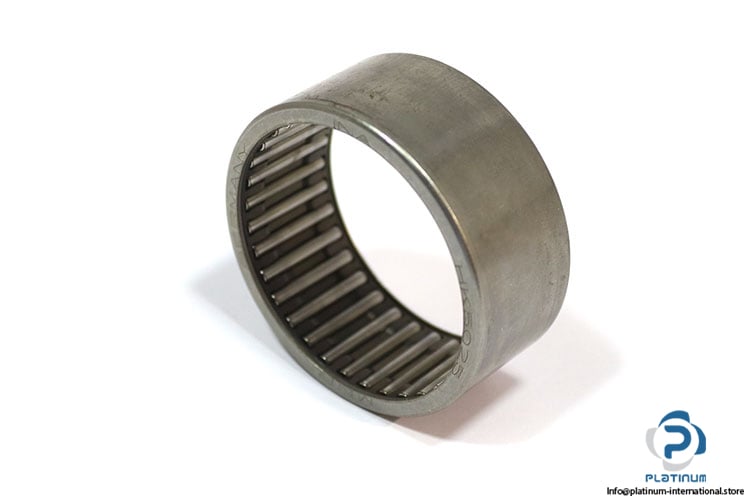

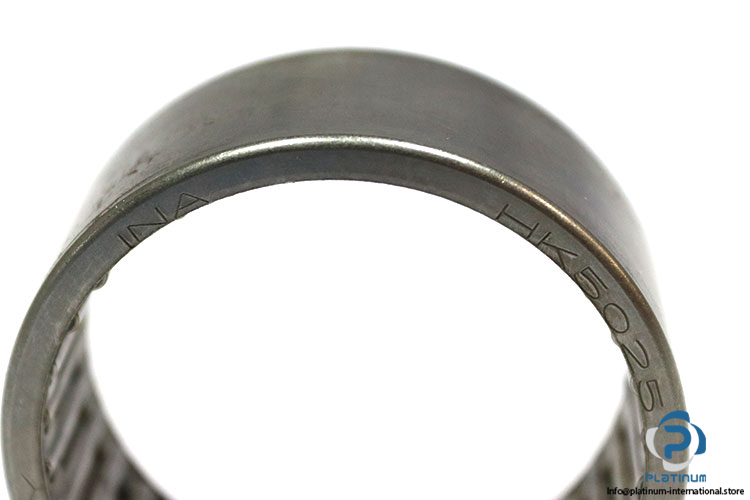

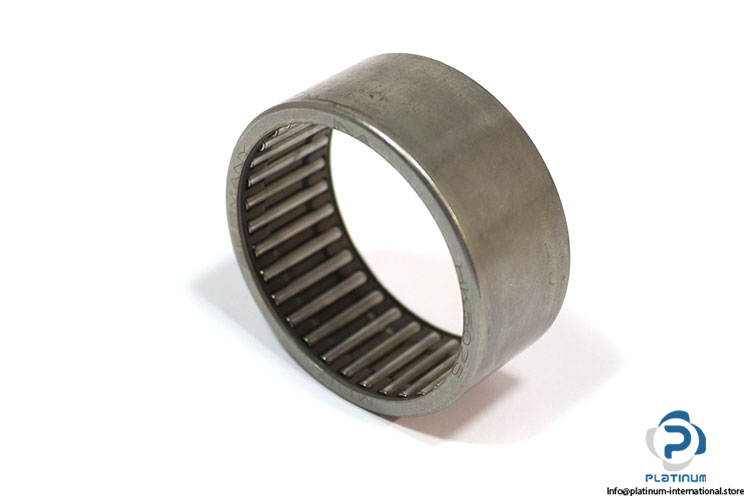

INA HK5025 Drawn Cup Needle Roller Bearing
The INA HK5025 is a high-performance drawn cup needle roller bearing designed to support high radial loads while maintaining a compact installation profile. It is suitable for applications requiring high load capacity and reliable operation under demanding conditions.
Manufacturer: INA
Type: Drawn Cup Needle Roller Bearing
Model: HK5025
| Diameter Under Rollers (Fw) | 50 mm |
| Outer Diameter (D) | 58 mm |
| Width Outer Ring (C) | 25 mm |
| Dynamic Load Rating (C) | 38,500 N |
| Static Load Rating (C0) | 84,000 N |
| Fatigue Load Limit | 11,900 N |
| Limiting Speed | 5,300 rpm |
| Limiting Speed (Grease Lubrication) | 3,150 rpm |
| Reference Speed | 4,000 rpm |
| Operating Temperature Range | -30 to 140 °C |
