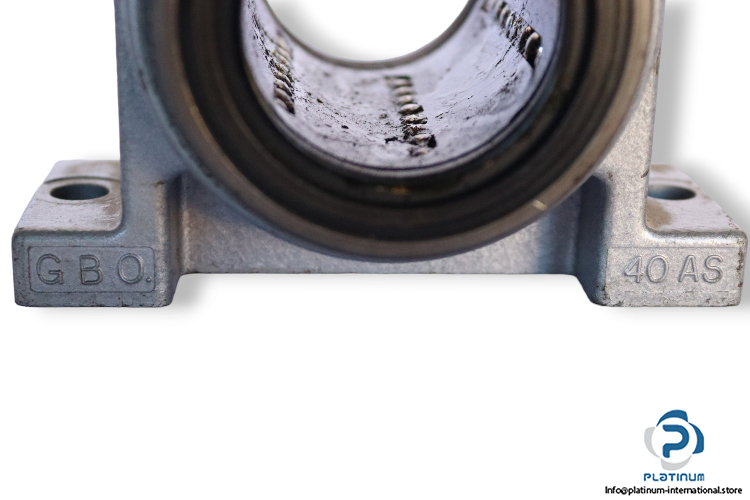

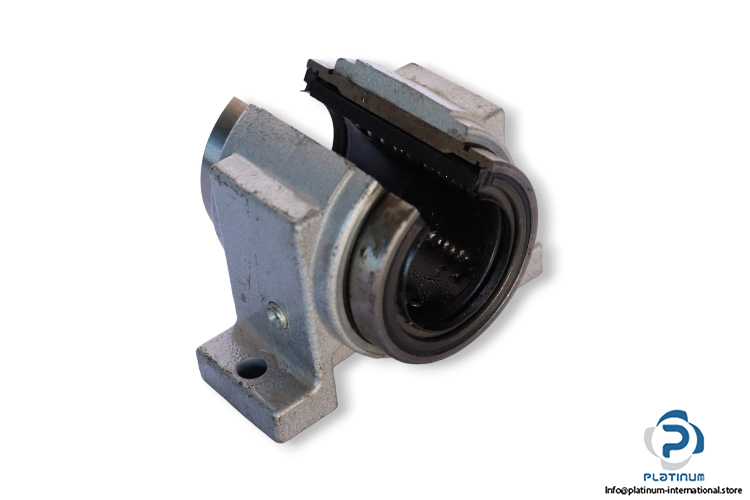

INA KGBO40-PP-AS Linear Bearing Unit

Manufacturer: INA
Type: Linear ball bearing and housing units
Model: KGBO 40-PP-AS

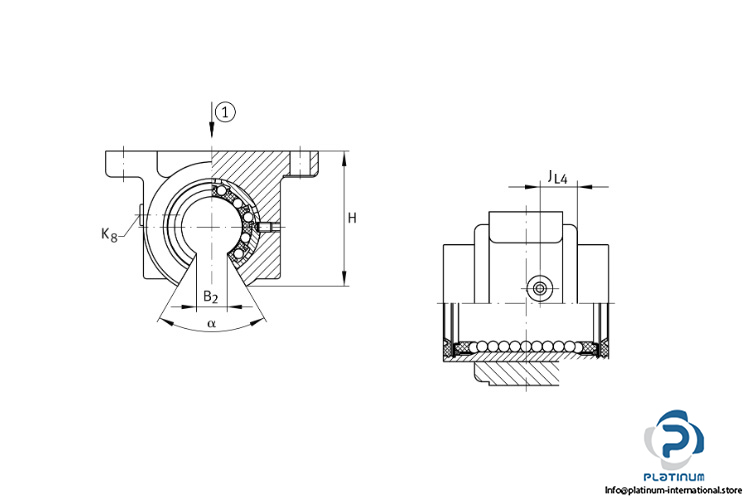

Shaft diameter F_w: 40 mm
Housing width B: 108 mm
Housing Height H: 79.5 mm
Housing Length L: 80 mm
JB: 94 mm
L5: 56 mm
Design type: Open Type
Rows of Balls: 5
Basic Load Ratings:
Dynamic C: 6100 N
Static C0: 4600 N
Angle α: 54 °
Sealing: PP, Lip Seal on Both Sides of Bearing
