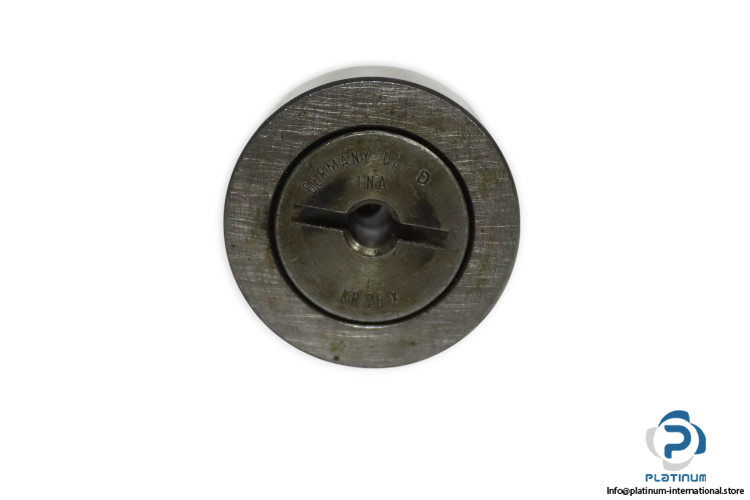

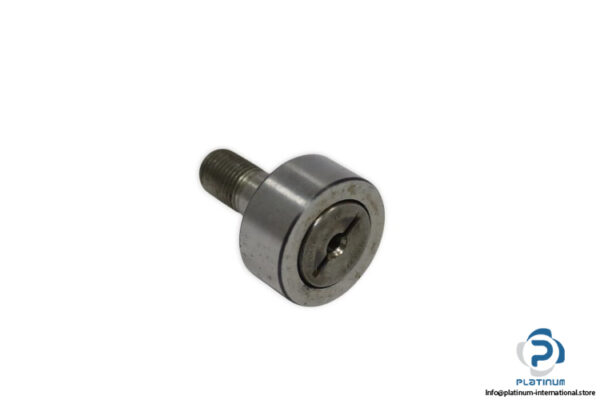

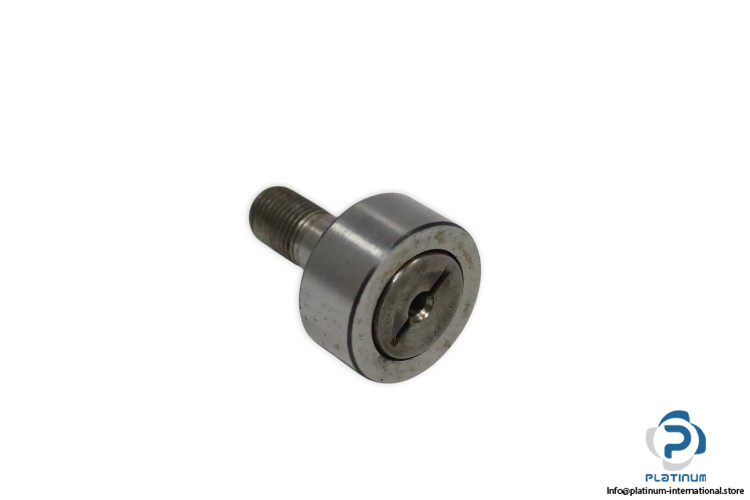

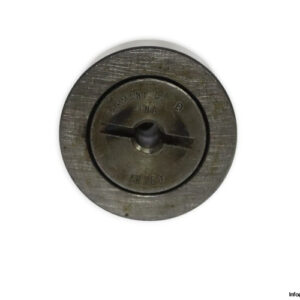

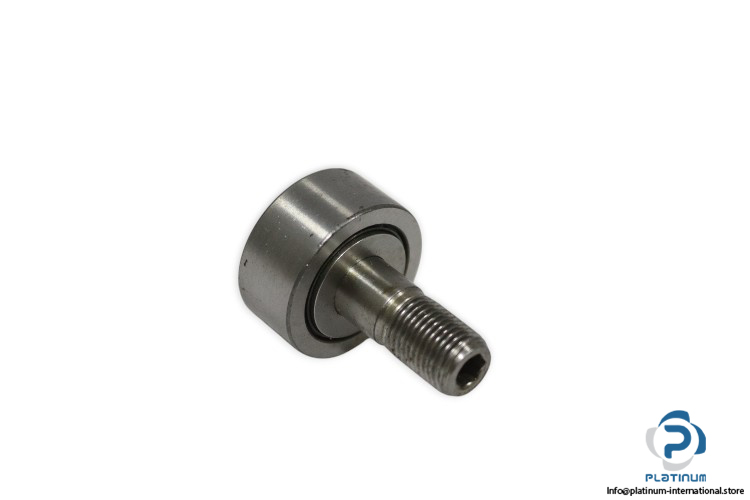

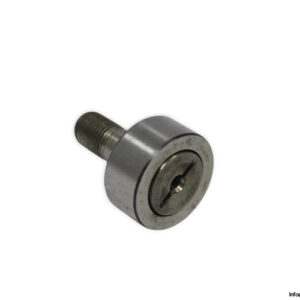

INA KR 26 X Stud Type Track Roller

Manufacturer: INA
Type: STUD TYPE TRACK ROLLER
Model: KR-26-X

Relubrication feature: KSP, Via head, stud and fit

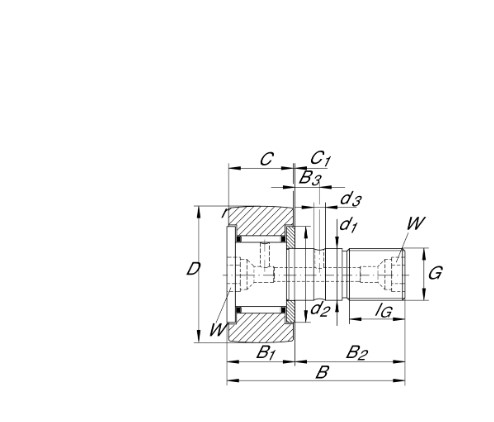

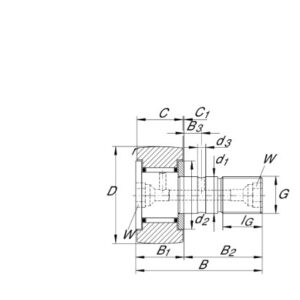

Dimensions:
Outside diameter D: 26 mm
Fit diameter of roller stud d₁: 10 mm
Width of the roller stud B: 36 mm
Maximum width of thrust washer: 13.2 mm
Thread G: M10X1
Thread length: 12 mm
Basic load ratings, radial:
Dynamic C_{r w}: 5100 N
Static C_{0r w}: 6500 N
Fatigue load limit C_{ur w}: 860 N
Speed on permanent grease lubrication: 8000 1/min
Outer Ring profile: X, Cylindrical profile
Sealing: Gap seal on both sides
