In stock4 unitsReady to ship
Manufacturer:
Schaeffler INA
Type:
Stud type track roller
Model:
KR 22
SKU
1004348
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Manufacturer: Schaeffler INA
Type: Stud type track roller
Model: KR 22

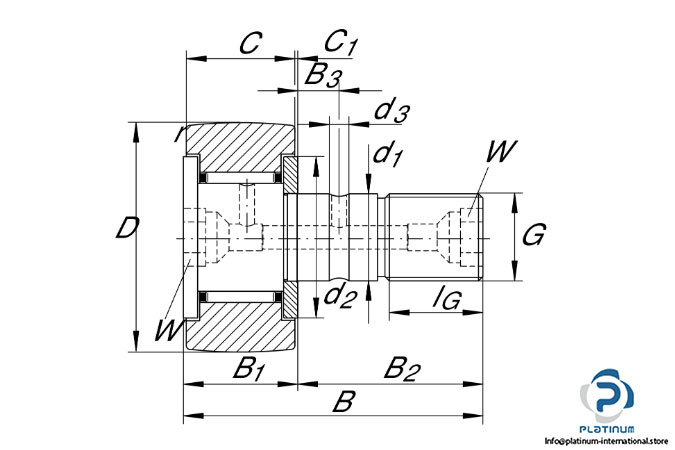

Dimensions:
Outside diameter D:
22 mm
Fit diameter of roller stud d1: 10 mm
Width of the roller stud B: 36 mm
Roller Width B1: 13.2 mm
Thread G: M10X1
Thread length: 12 mm
Basic load ratings, radial:
Dynamic Cr w:
4500 N
Static C0r w: 5400 N
Fatigue load limit Cur w: 740 N
Speed on permanent grease lubrication: 8000
Sealing: Gap seal on both sides

Related Products

Nadella GCL 19 Stud Type CAM Follower
NewAvailable on request

Nadella GCL 19 Stud Type CAM Follower

SKU: 995675

Available on request

Available through quotation
Mcgill MCF30S Stud Type CAM Follower
New

Mcgill MCF30S Stud Type CAM Follower

SKU: 995650

Qty: 9

Available through quotation
INA KR26 PPX Stud Type Track Roller
New

INA KR26 PPX Stud Type Track Roller

SKU: 1004351

Qty: 5

Available through quotation
SKF KR 26 PP Stud Type Track Roller
New

SKF KR 26 PP Stud Type Track Roller

SKU: 995647

Qty: 3

Available through quotation
Gudel LR15Z Stud Type Track Roller
New

Gudel LR15Z Stud Type Track Roller

SKU: 992439

Qty: 2

Available through quotation
Platinum International
Surplus, New & Used - Always Reliable
SKU: 1004348

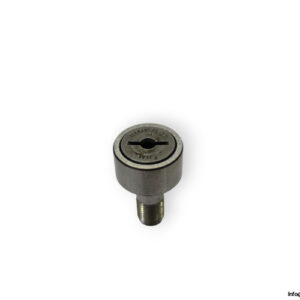

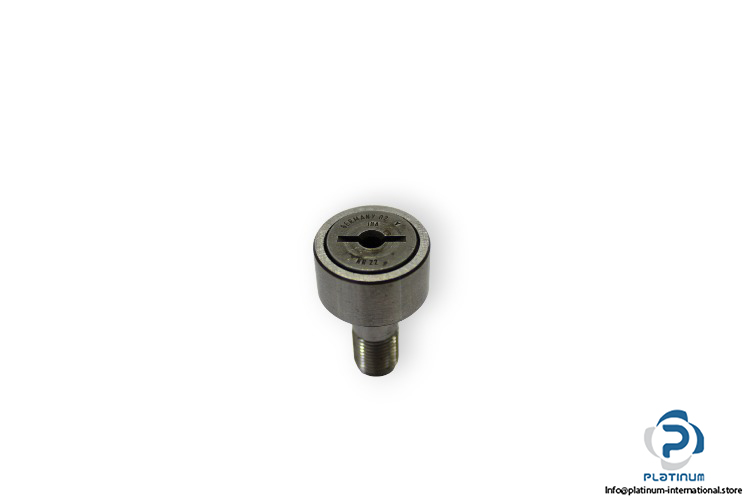

INA KR22 Stud Type Track Roller
