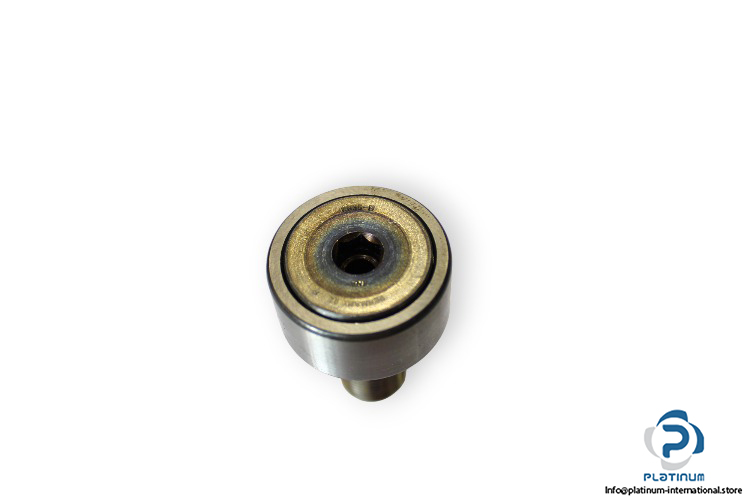

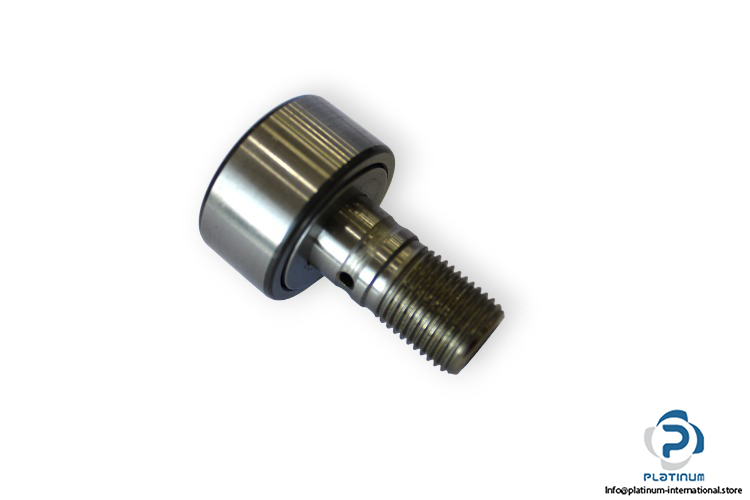

INA KR35-B Stud Type Track Roller

Manufacturer: INA
Type: Stud type track roller
Model: KR 35-B

Dimensions:
Outside diameter D: 35 mm
Fit diameter of roller stud d₁: 16 mm
Width of the roller stud B: 52 mm
Roller Width B₁: 19.6 mm
Thread G: M16X1,5
Thread length: 17 mm
Basic load ratings, radial:
Dynamic C_{r w}: 9700 N
Static C_{0r w}: 14500 N
Fatigue load limit C_{ur w}: 1860 N
Speed on permanent grease lubrication: 3600 rpm
