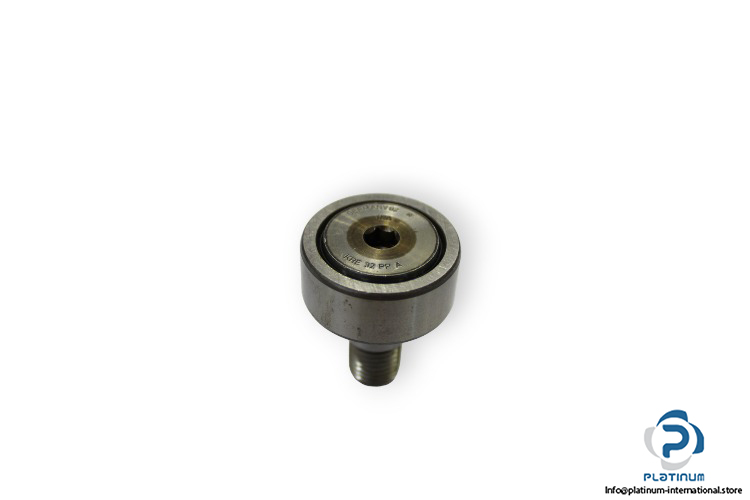

INA KRE 32 PP A Stud Type Track Roller

Manufacturer: INA
Type: Stud type track roller
Model: KRE32-PPA

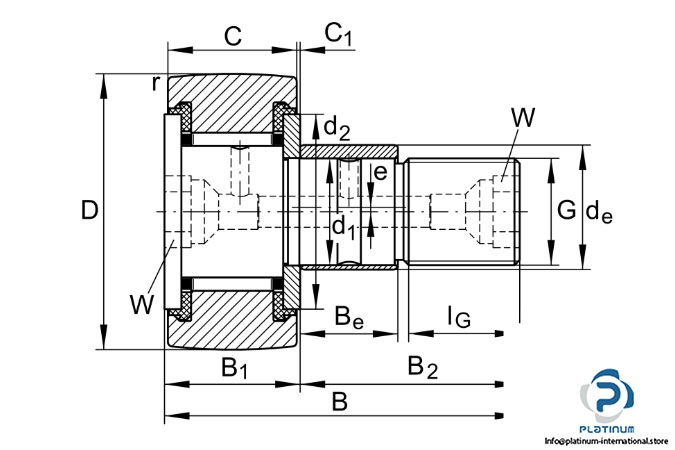

Dimensions
Outside diameter D: 32 mm
Fit diameter of roller stud d₁: 12 mm
Width of the roller stud B: 40 mm
Roller Width B₁: 15.2 mm
Thread G: M12X1.5
Basic load ratings, radial:
Dynamic C_{r w}: 7100 N
Static C_{0r w}: 9300 N
Fatigue load limit C_{ur w}: 1320 N
Speed on permanent grease lubrication: 5500 rpm
Sealing: PP, Three-stage sealing by plastic axial plain washer on both sides
