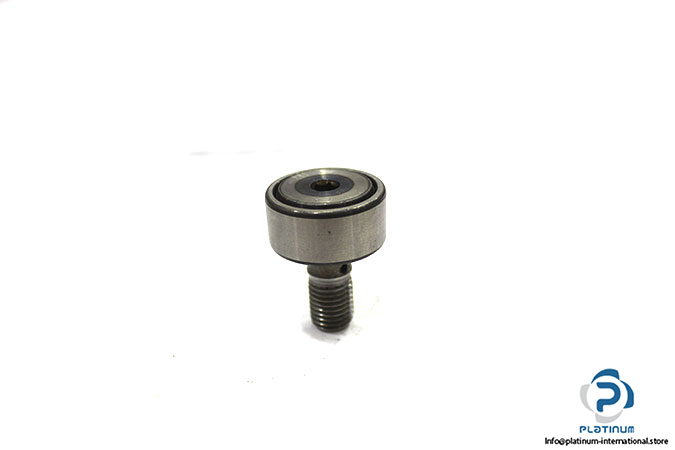

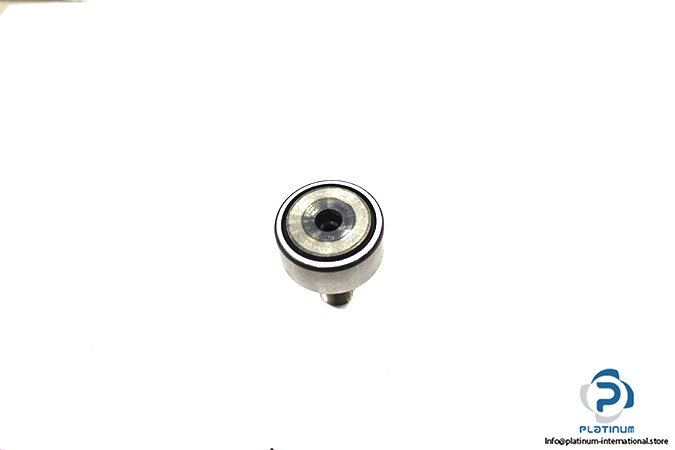

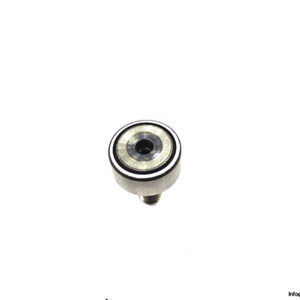

INA KRV30-PP-A Stud Type Track Roller

Manufacturer: INA
Type: Stud type track roller with axial guidance, full complement needle roller set
Model: KRV30PPA

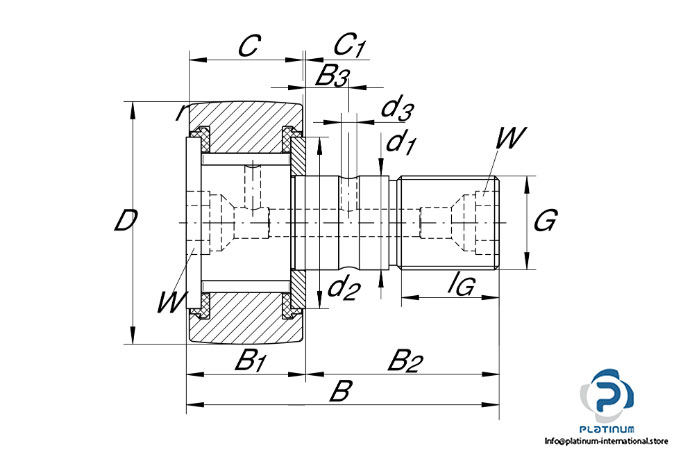

Dimensions:
Outside diameter D: 30 mm
Fit diameter of roller stud d₁: 12 mm
Width of the roller stud B: 40 mm
Roller Width B₁: 15.2 mm
Thread G: M12X1.5
Thread length: 13 mm
Basic load ratings, radial:
Dynamic C_{r w}: 9500 N
Static C_{0r w}: 15100 N
Fatigue load limit C_{ur w}: 2080 N
Speed on permanent grease lubrication: 2100 rpm
Sealing: PP, Three-stage sealing by plastic axial plain washer on both sides
