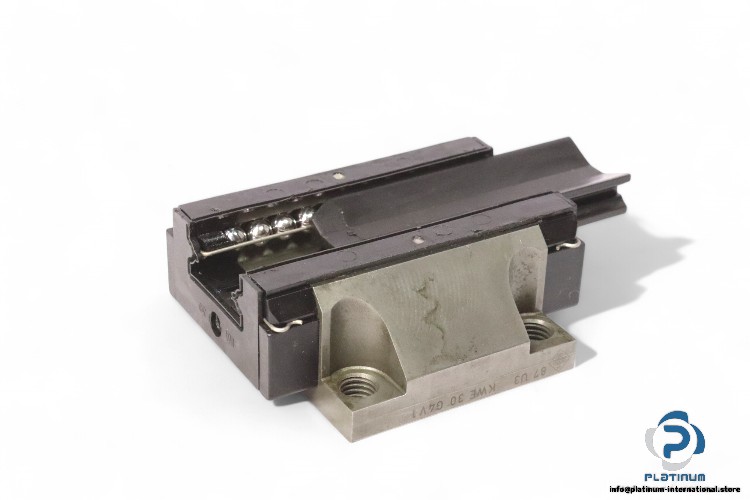

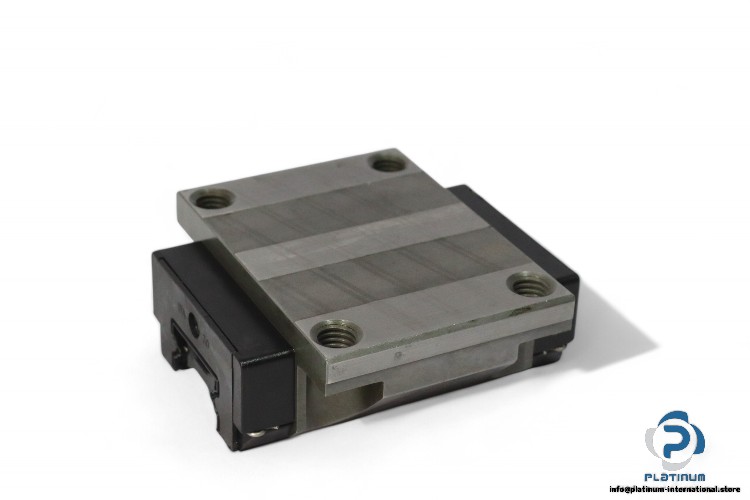

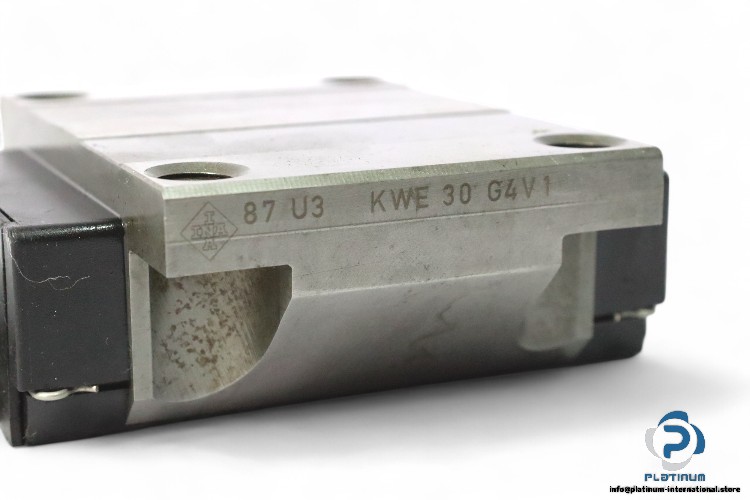

INA KWE30 G4 V1 Recirculating Ball Bearing Carriage

ina-KWE30-G4-V1-recirculating-ball-bearing-carriage-(used)
ina-KWE30-G4-V1-recirculating-ball-bearing-carriage-(used)-1
ina-KWE30-G4-V1-recirculating-ball-bearing-carriage-(used)-2
ina-KWE30-G4-V1-recirculating-ball-bearing-carriage-(used)-3
ina-KWE30-G4-V1-recirculating-ball-bearing-carriage-(used)-1
ina-KWE30-G4-V1-recirculating-ball-bearing-carriage-(used)-2
ina-KWE30-G4-V1-recirculating-ball-bearing-carriage-(used)-3
Used
In stock1 unitReady to ship

Type: RECIRCULATING BALL BEARING CARRIAGE Model: KWE30 G4 V1

Manufacturer:
INA
Manufacturer
INA?
SKU
1057433
Category
Linear Motion
Condition
Used
30BallbearingBlockcarriagesInaLinearmmMotionRecirculatingRunnerSchaeffler
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Manufacturer: INA
Type: RECIRCULATING BALL BEARING CARRIAGE
Model: KWE30 G4 V1

Size: 30 mm

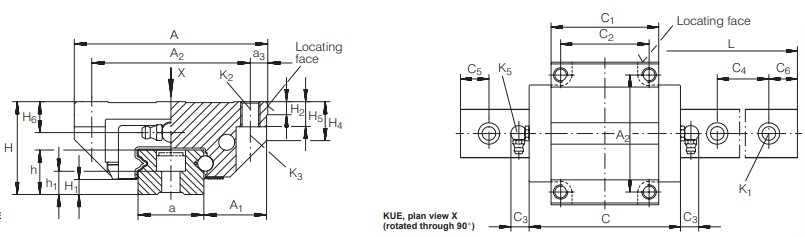

Dimensions:
Height system H: 42 mm
Width carriage A: 90 mm
Overall length carriage C: 93 mm
A2: 72 mm
C2: 52 mm
Preload: V1
Accuracy Class: G4
Basic Load Ratings:
Dynamic C: 22.5 kN
Static C0: 29.7 kN
Static Moment Rating About:
X axis M0x: 437 Nm
Y axis M0Y: 335 Nm
Z axis M0Z: 335 Nm
