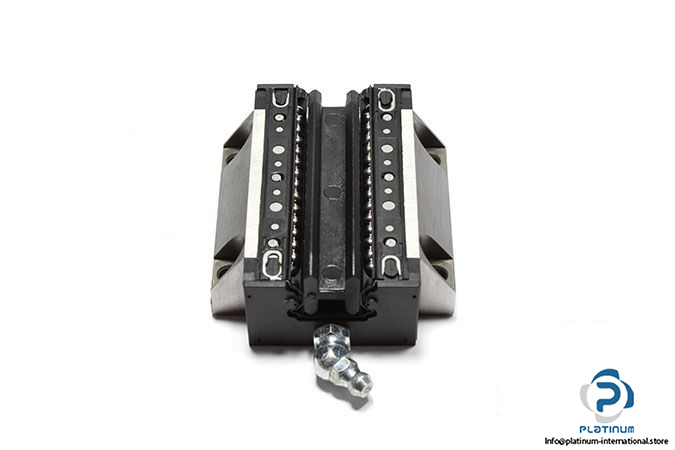

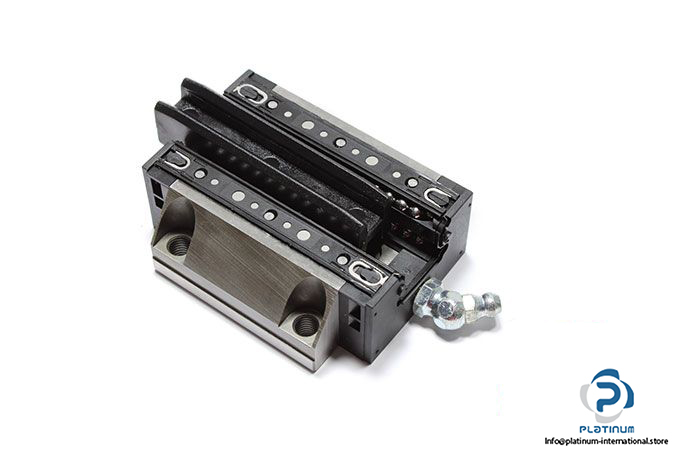

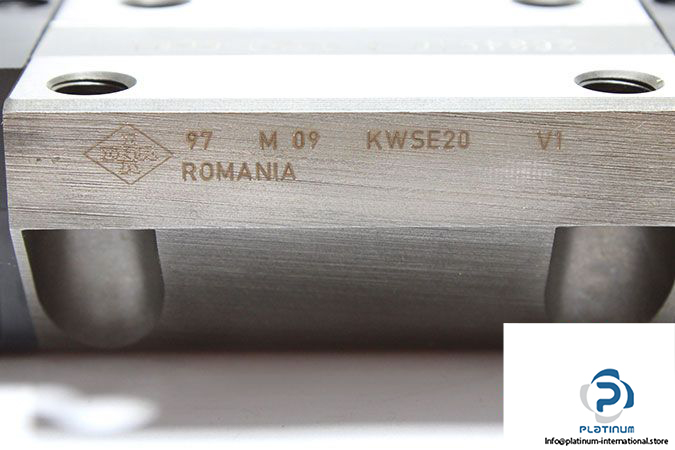

INA KWSE20 G3 V1 Recirculating Ball Bearing Carriage
New
In stock1 unitReady to ship
150,00$
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Schaeffler INA
Type: Six-Row Linear Recirculating Ball Bearing Carriage
MNR: KWSE20-G3-V1
Size: 20 mm
Basic Load Ratings (Compressive Load):
Dynamic C: 22,000 N
Static C0: 52,000 N
Static Moment Rating About:
X axis M0x: 530 Nm
Y axis M0Y: 350 Nm
Z axis M0Z: 305 Nm
Preload: V1
Accuracy Class: G3

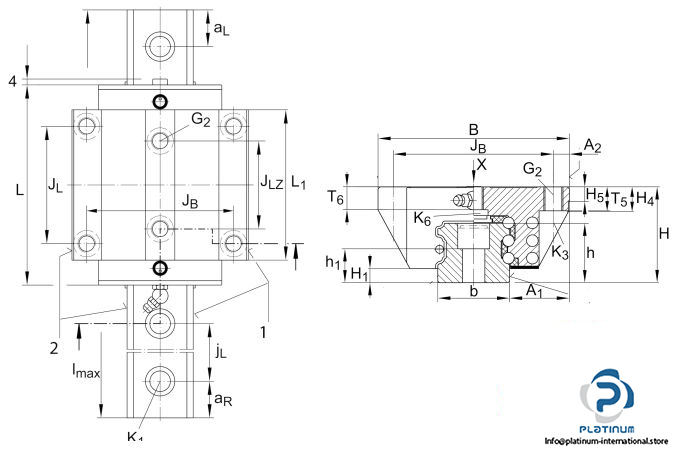

Dimensions
Height system H: 30 mm
Width carriage B: 63 mm
Overall length carriage L: 71.4 mm
Weight: 0.44 kg
