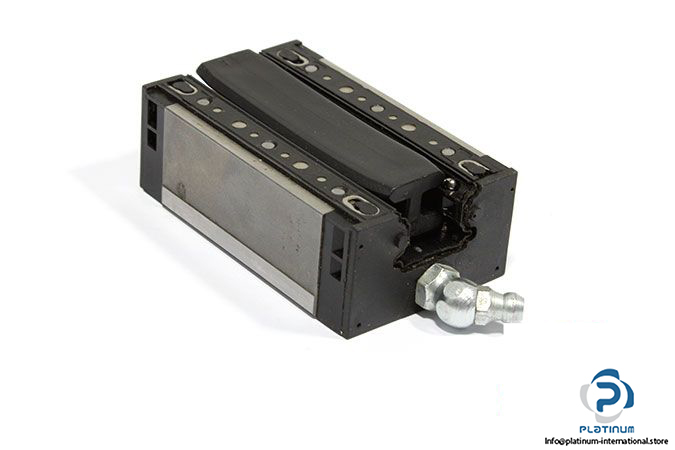

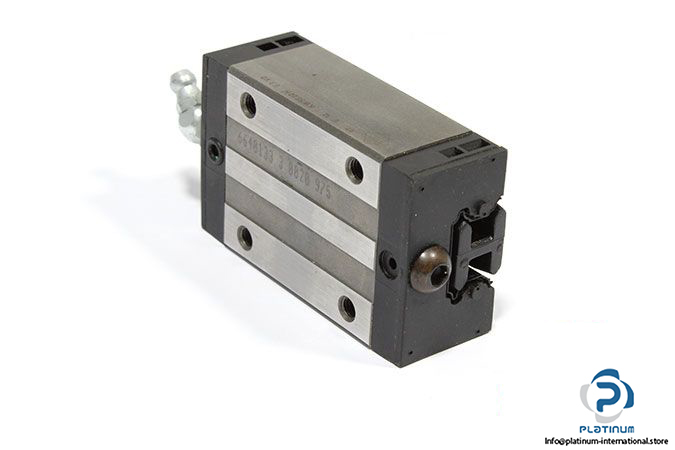

INA KWSE20H G3 V2 Recirculating Ball Bearing Carriage

Manufacturer: Schaeffler INA

Type: Six-Row Linear Recirculating Ball Bearing Carriage

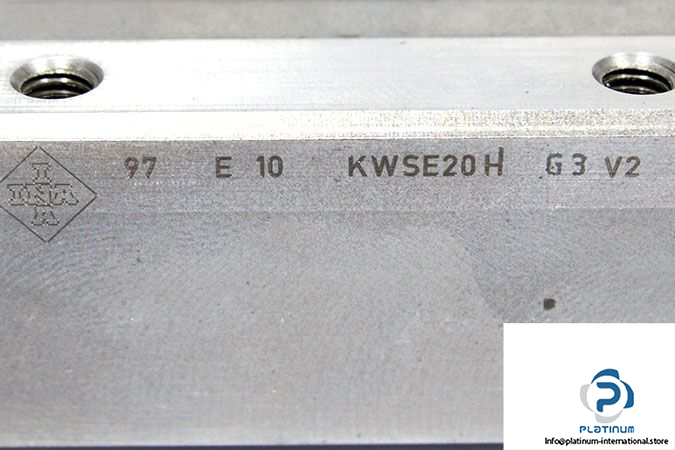

Model: KWSE20H-G3-V2

Size: 20 mm

Carriage Design: High, Narrow carriage

Basic Load Ratings (Compressive Load):

Dynamic C: 25500 N

Static C₀: 61000 N

Basic Load Ratings (Tensile Load):

Dynamic C: 21300 N

Static C₀: 35300 N

Basic Load Ratings (Lateral Load):

Dynamic C: 21000 N

Static C₀: 35000 N

Static Moment Rating About:

X axis M_0x: 530 Nm

Y axis M_0Y: 350 Nm

Z axis M_0Z: 305 Nm

Preload: V2

Accuracy Class: G3

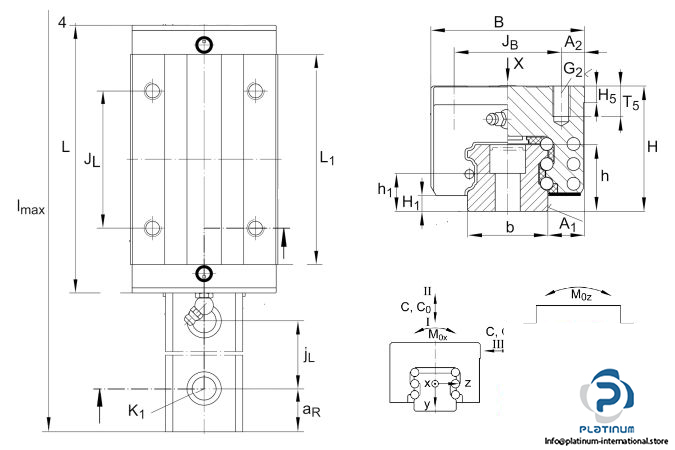

Dimensions:

Height system H: 30 mm

Width carriage B: 44 mm

Overall length carriage L: 71.4 mm

J_B: 32 mm

J_L: 36 mm

Weight: 0.33 kg
