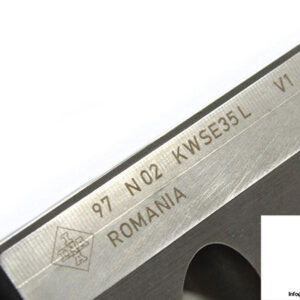

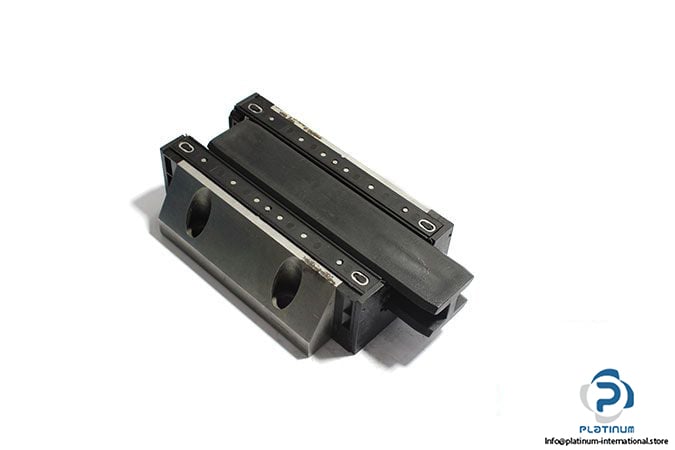

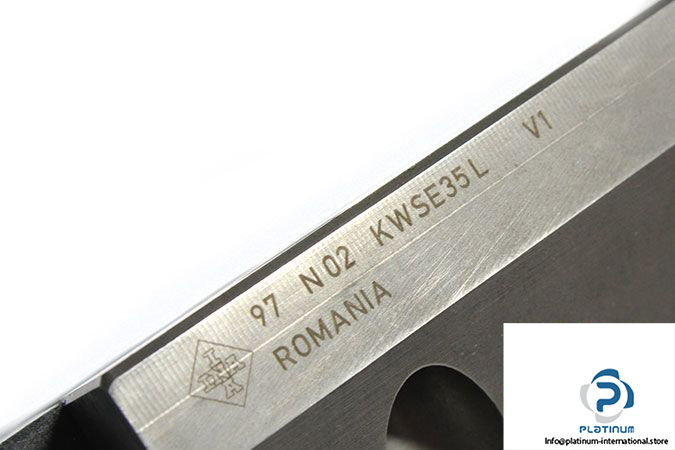

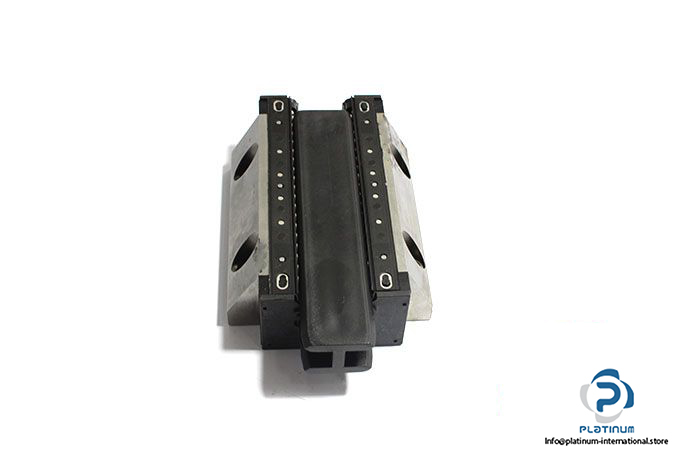

INA KWSE35L G3 V1 Recirculating Ball Bearing Carriage

Manufacturer: Schaeffler INA

Type: Long carriage for six-row Linear Recirculating Ball Bearing Carriage

Model: KWSE35L-G3-V1

Size: 35 mm

Basic Load Ratings (Compressive Load):

Dynamic C: 70,000 N

Static C₀: 145,000 N

Basic Load Ratings (Tensile Load):

Dynamic C: 67,500 N

Static C₀: 119,000 N

Basic Load Ratings (Lateral Load):

Dynamic C: 71,000 N

Static C₀: 125,000 N

Static Moment Rating About:

X axis M_0x: 3300 Nm

Y axis M_0Y: 2480 Nm

Z axis M_0Z: 2190 Nm

Preload: V1

Accuracy Class: G3

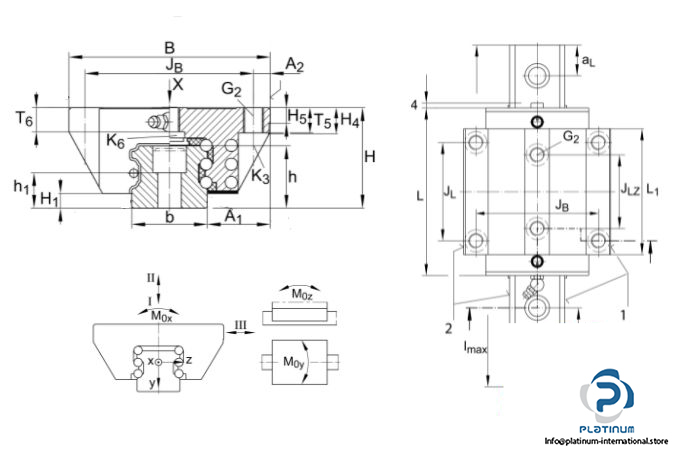

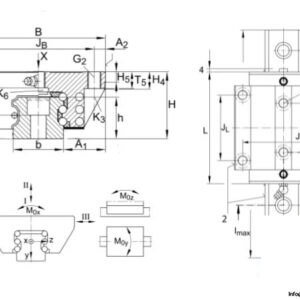

Dimensions:

Height system H: 48 mm

Width carriage B: 100 mm

Overall length carriage L: 138.9 mm

Weight: 2.28 kg
