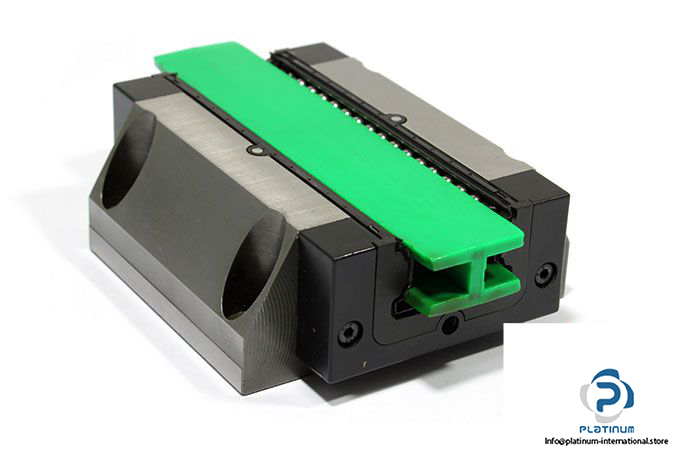

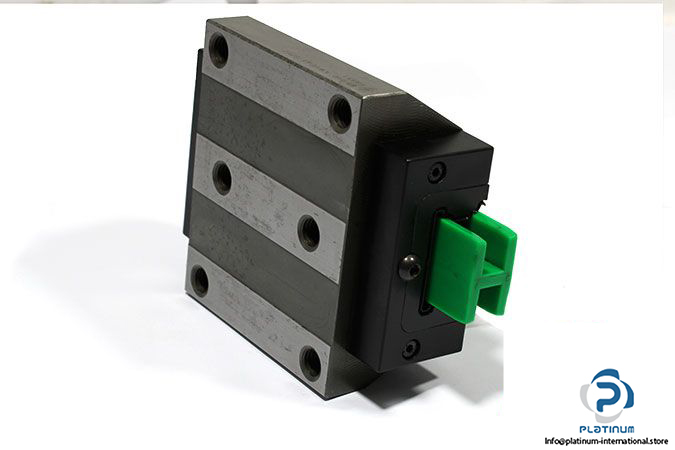

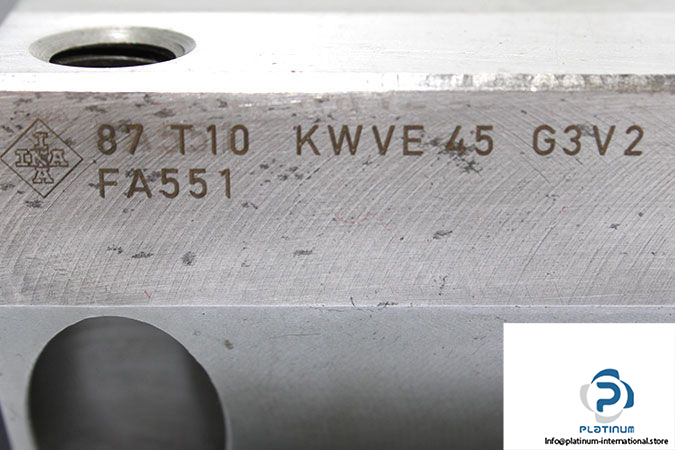

INA Kwve 45 G3 V2 Recirculating Ball Bearing Carriage

Manufacturer: Schaeffler INA

Type: Four-row Linear recirculating Ball Bearing

Model: KWVE45 G3V2

Size: 45 mm

Carriage Design: Flange, Standard

Basic Load Ratings:

Dynamic C: 69 kN

Static C₀: 141 kN

Static Moment Rating About:

X axis M_0x: 3610 Nm

Y axis M_0Y: 2485 Nm

Z axis M_0Z: 2485 Nm

Preload: V2

Accuracy Class: G3

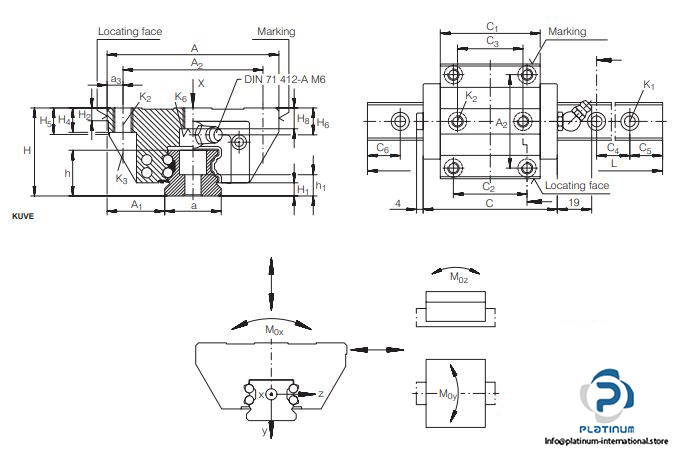

Dimensions

Total Height H: 60 mm

Width carriage A: 120 mm

Overall length carriage C: 139 mm

A₂: 100 mm

C₂: 80 mm

Weight: 3.5 kg
