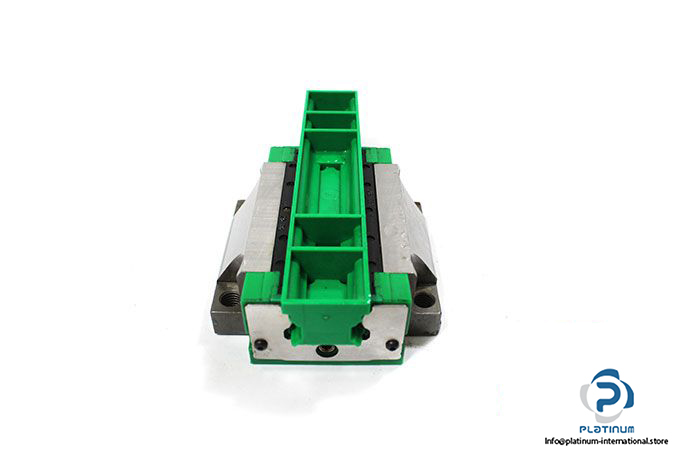

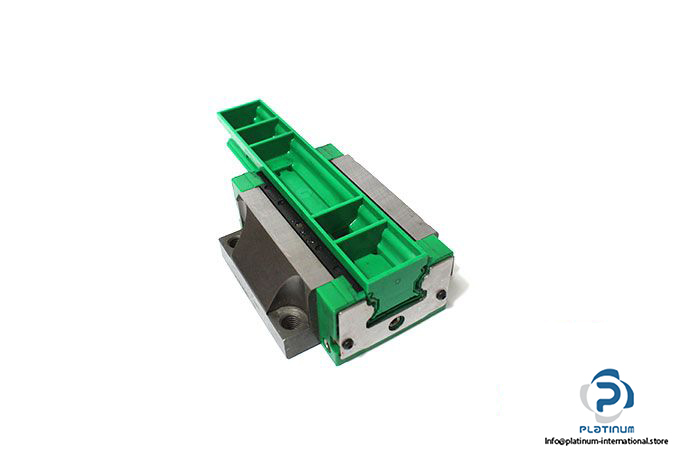

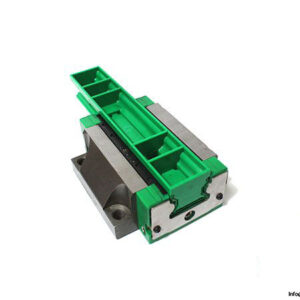

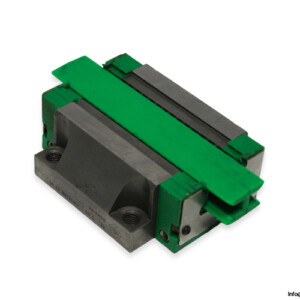

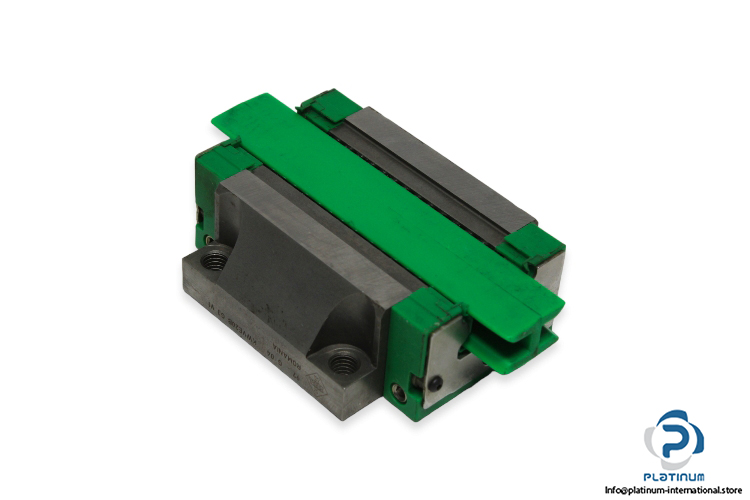

INA KWVE20B G3 V1 Linear Recirculating Ball Bearing

Manufacturer: Schaeffler INA

Type:  Four-Row Linear Recirculating Ball Bearing

Model: KWVE20-B-V1-G3

Size: 20

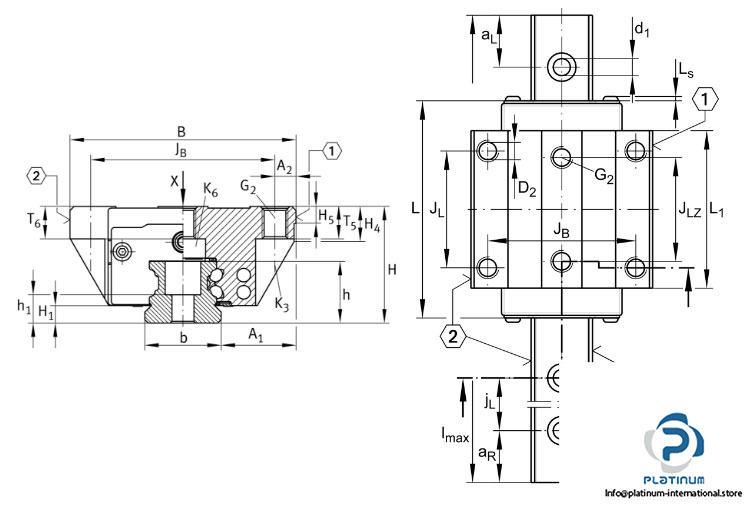

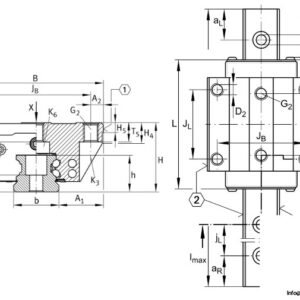

Dimensions

Length ( L ): 71.4 mm

Width ( B ): 63 mm

Height ( H ): 30 mm

Block Height: 25.5 mm

J_B: 53 mm

J_L: 40 mm

Basic Dynamic load rating: 13100 N

Basic Static load rating: 27000 N

Block Type: Flange Type

Mounting Hole: 6 tapped holes

Guideway Model: TKVD20 (-U)

Accuracy Class: G3

Carriage Preload: V1
