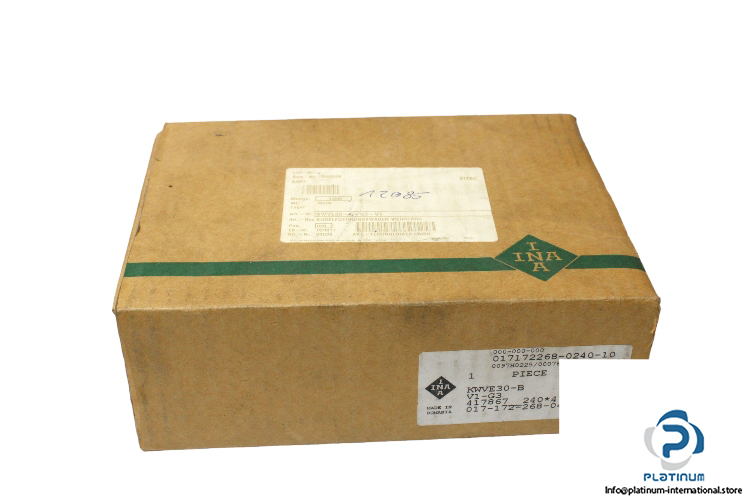

INA KWVE30-B-V1-G3 Linear Recirculating Ball Bearing

Manufacturer: Schaeffler INA

Type:  Four-Row Linear Recirculating Ball Bearing

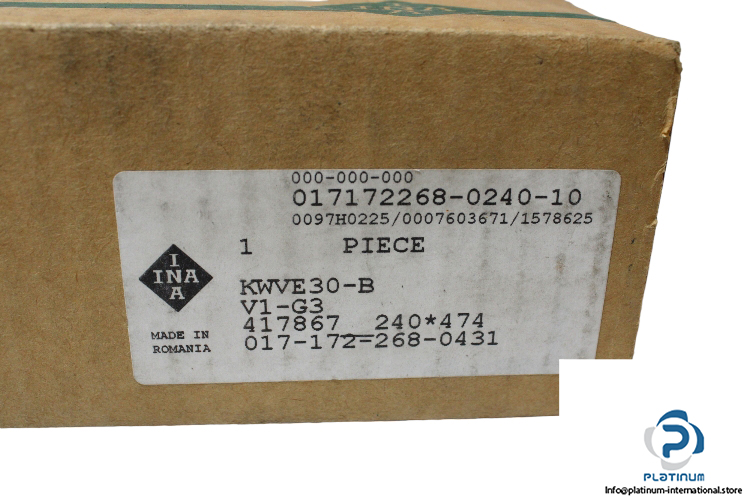

Model: KWVE 30-B-V1-G3

Size: 30

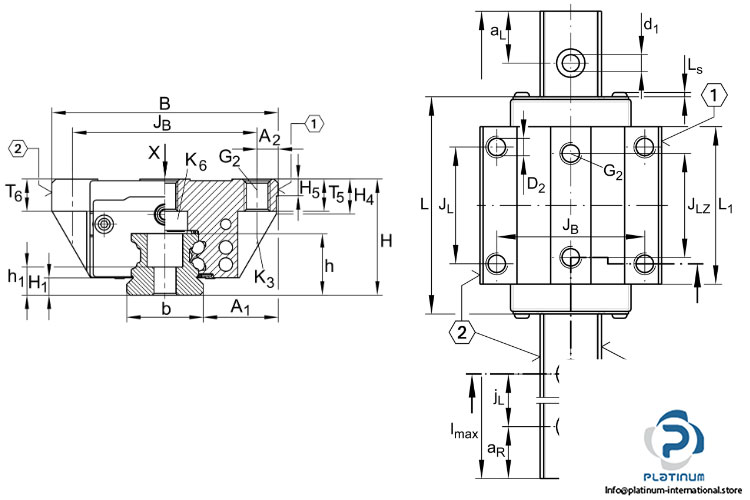

Dimensions

Length ( L ): 99 mm

Width ( B ): 90 mm

Height ( H ): 42 mm

J_B: 72 mm

J_L: 52 mm

Basic Load Ratings:

Dynamic C: 27500 N

Static C₀: 55000 N

Block Type: Flange Type

Mounting Hole: 6 holes

Guideway Model: TKVD30(-U)

Accuracy Class: G3

Carriage Preload: V1
