INA KWVE35-B-L-G3-V1-SM06 Recirculating Ball Bearing Carriage
New
In stock2 unitsReady to ship
Recirculating Ball Bearing Carriage (Long carriage)
INA KWVE35-B-L-G3-V1-SM06 Recirculating Ball Bearing Carriage offers high load capacities with a dynamic load of 47,500 N and static moment ratings across multiple axes. It is built for precise, heavy-duty applications with an accuracy class of G3.47500AccuracyBallbearingCarriageClassDynamicG3Heavy-DutyInaKWVE35KWVE35-B-L-G3-V1-SM06LinearLoadMotionNRecirculating
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
INA KWVE35-B-L-G3-V1-SM06 Recirculating Ball Bearing Carriage (Long carriage)
The INA Recirculating Ball Bearing Carriage KWVE35-B-L-G3-V1-SM06 is designed for high-load applications requiring precise linear movement. With a dynamic load capacity of 47,500 N and static moment ratings across multiple axes, this carriage offers exceptional durability and performance in industrial environments.
Manufacturer: INA
Type: Recirculating Ball Bearing Carriage (Long carriage)
Model: KWVE35-B-L-G3-V1-SM06

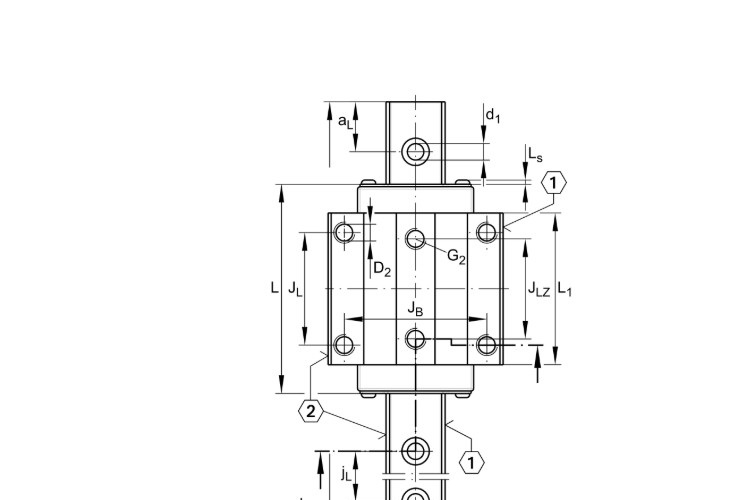

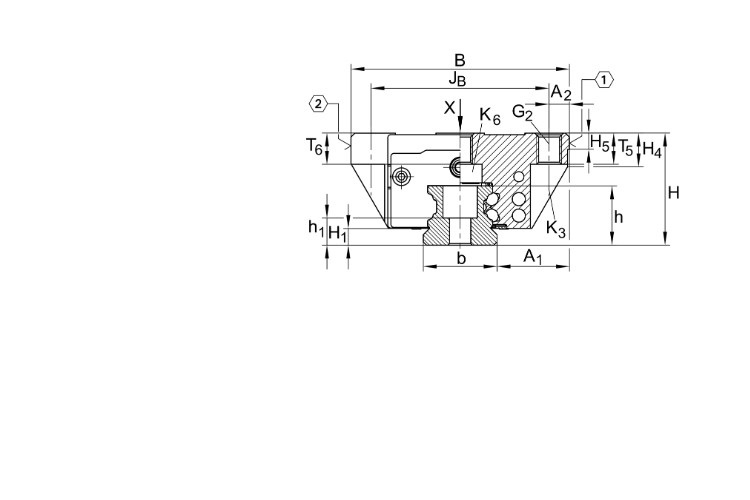

| Total Height (H) | 48 mm |
| Width Carriage (B) | 100 mm |
| Overall Length Carriage (L) | 145 mm |
| Height of Block | 41.3 mm |
| JL | 62 mm |
| JB | 82 mm |
| Dynamic Load Capacity (C) | 47,500 N |
| Static Load Capacity (C0) | 100,000 N |
| Static Moment Rating About X Axis (M0x) | 2625 Nm |
| Static Moment Rating About Y Axis (M0Y) | 1890 Nm |
| Static Moment Rating About Z Axis (M0Z) | 1890 Nm |
| Preload | V1 |
| Accuracy Class | G3 |
