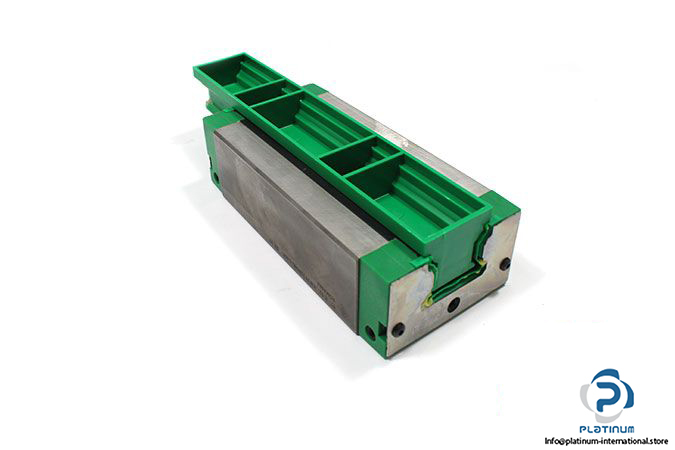

INA KWVE35BSNL Recirculating Ball Bearing Carriage
New
In stock32 unitsReady to ship
95,00$
The INA Schaeffler KWVE35BSNL recirculating ball bearing carriage is a precision linear guide block from the KUVE..B series. Featuring Size 35, G3 accuracy, V1 preload, and high dynamic and static load ratings, it is ideal for CNC machines, industrial automation, and precision linear motion applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Series | KUVE..B |

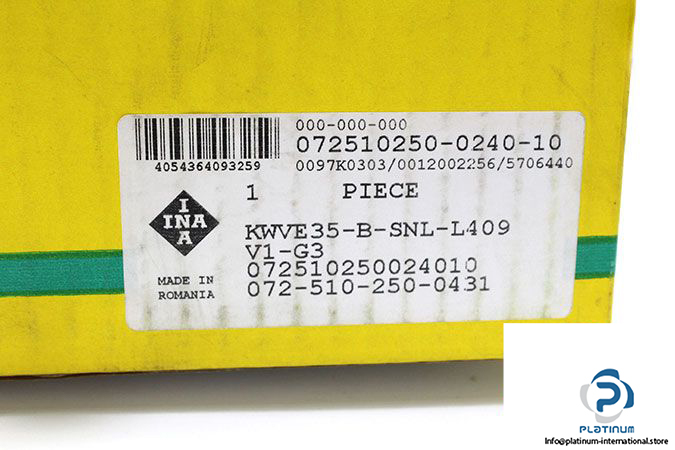

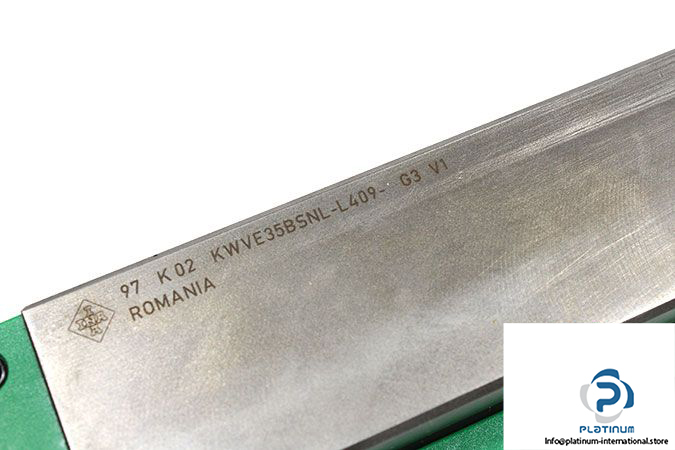

| MRN | KWVE35-B-SNL-L409-G3 V1 |
| Size | 35 |

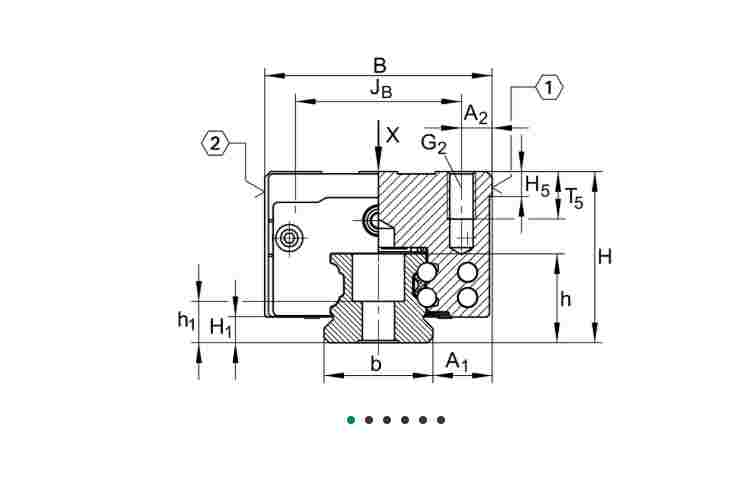

| Height System H | 44 mm |
| Height of Block | 37.3 mm |
| Width Carriage B | 70 mm |
| Overall Length Carriage L | 145 mm |
| JL | 72 mm |
| JB | 50 mm |
| Block Type | Squere |
| Accuracy Class | G3 |
| Carriage Preload | V1 |
| Basic Dynamic load rating | 47,500 N |
| Basic Static load rating | 100,000 N |
| Static moment rating about X axis, M0x | 2,625 Nm |
| Static moment rating about Y axis, M0y | 1,890 Nm |
| Static moment rating about Z axis, M0z | 1,890 Nm |
| Condition | New |
| SKU | 966143 |
| Weight | 1,8 |
