INA LR 200 Nppu Track Roller
New
In stock1 unitReady to ship
Yoke Cam Follower / Track Roller
INA LR200NPPU track roller with 10 mm shaft diameter, 32 mm outer diameter, and sealed crowned design. Built for reliable motion and load handling in industrial applications.bearingCamComponentFollowerGuideInaIndustrialLinearLoadMechanicalMotionPrecisionRollerSystemtrackYoke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

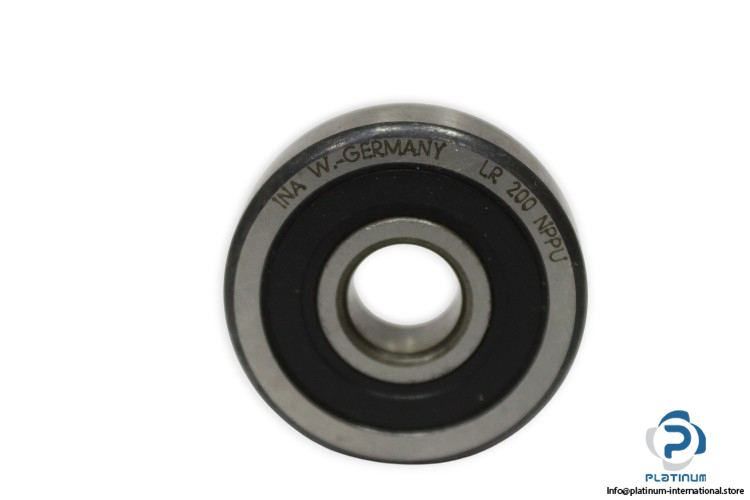

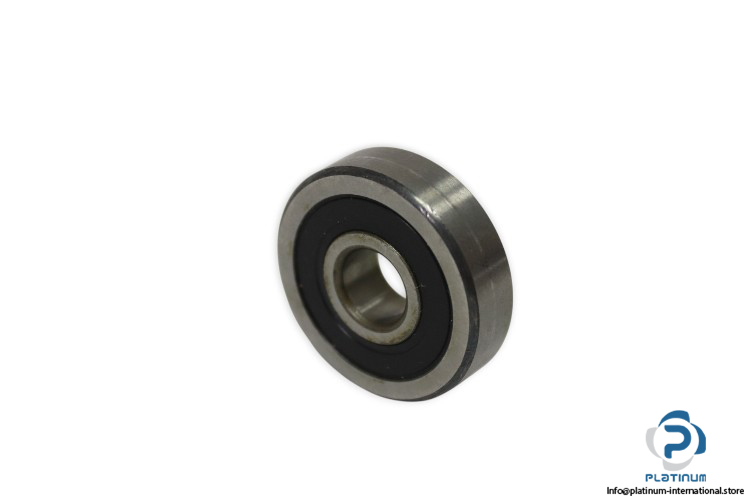

INA LR200NPPU Yoke Cam Follower / Track Roller
The INA LR200NPPU is a precision yoke cam follower designed for high load capacity and smooth motion in industrial track and guide systems.
Manufacturer: INA
Type: Yoke Cam Follower / Track Roller
Model: LR200NPPU

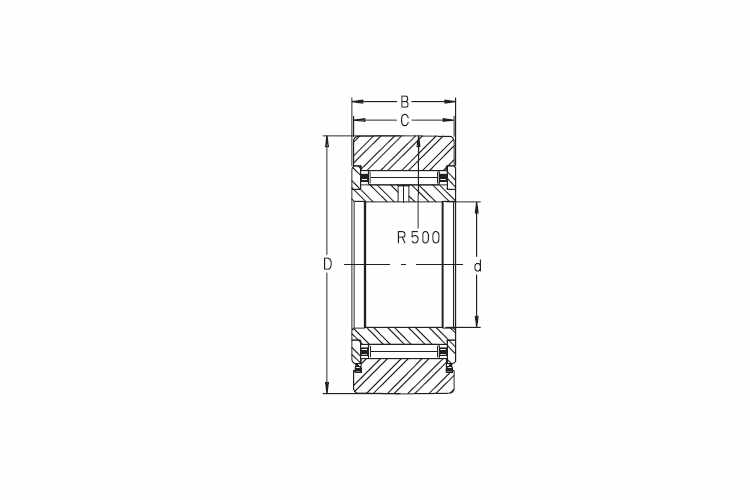

| Shaft Diameter (d) | 10 mm |
| Outer Diameter (D) | 32 mm |
| Width Inner (B) | 9 mm |
| Width Outer (C) | 9 mm |
| Dynamic Load Rating (Cr) | 5100 N |
| Static Load Rating (C0r) | 2370 N |
| Effective Dynamic Capacity (Cw) | 4350 N |
| Effective Static Capacity (C0w) | 2130 N |
| Limiting Frperm | 4260 N |
| Sealing | NPP, Two Seals (Non-Preloaded) |
| Design | U, Crowned Outside Surface |
