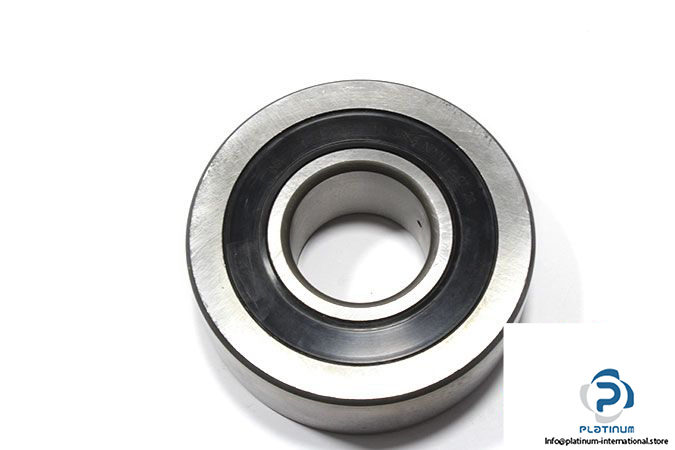

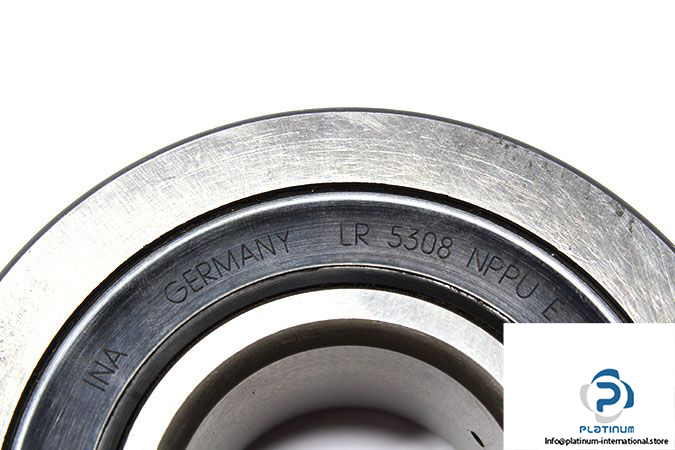

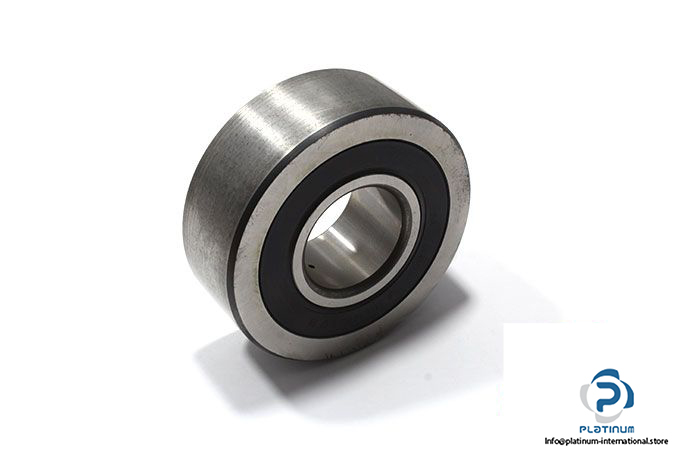

INA LR5308 Nppu Track Roller Ball Bearing

Manufacturer: Schaeffler INA

Type: ‎ Track roller Ball Bearing

Model: LR5308 NPPU

Alt Model: LR5308-2RS

Successor: LR5308-2HRS-TVH-XL

Yoke Type Cam Follower, Track roller Ball Bearing, Double row

Bore Diameter: 40 mm

Outer Diameter: 100 mm

Width: 36.5 mm

Chamfer r_min: 1.5 mm

Basic load ratings:

Dynamic C: 53000 N

Static C_0r: 46000 N

Fatigue load limit: 2380 N

Limiting speed Grease: 2700 rpm

Weight: 1.4 kg
