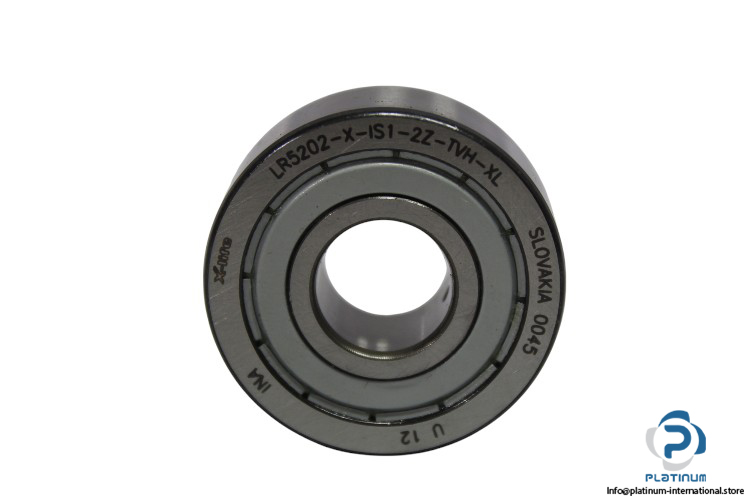

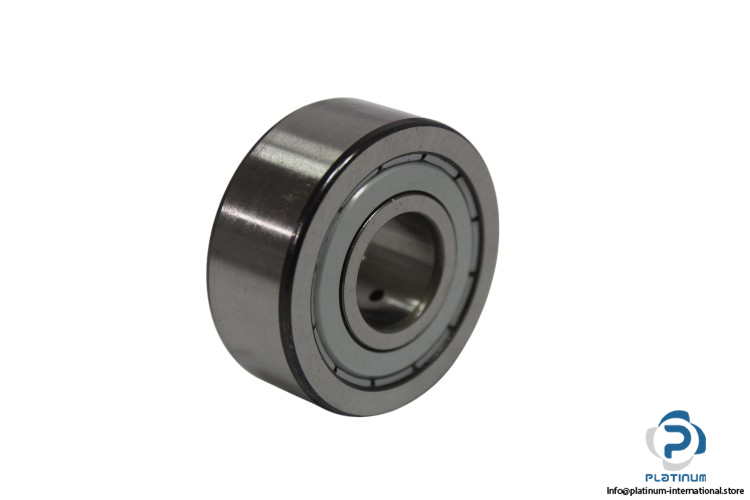

INA LR5202-X-IS1-2Z-TVH-XL Track Roller
In stock29 unitsReady to ship
Track Roller
INA LR5202-X-IS1-2Z-TVH-XL track roller with 15 mm bore and 40 mm outer diameter. Features grease-lubricated speed up to 10,200 rpm, 2Z shielding, and reinforced polyamide cage for high durability.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
INA LR5202-X-IS1-2Z-TVH-XL Track Roller
This high-performance track roller from INA is built to handle radial loads in guideway systems and cam drives with precision and durability under continuous operation.
Manufacturer: INA
Type: Track Roller
Model: LR5202-X-IS1-2Z-TVH-XL
| Outer Diameter (D) | 40 mm |
| Bore Diameter (d) | 15 mm |
| Height (C) | 15.9 mm |
| Basic Dynamic Load Rating (Cr) | 10,800 N |
| Basic Static Load Rating (C0r) | 7,700 N |
| Fatigue Load Limit (Cur w) | 390 N |
| Speed on Permanent Grease Lubrication | 10,200 1/min |
| Permissible Dynamic Load on Outer Ring, Radial | 7,700 N |
| Sealing | 2Z “ Shielded on Two Sides |
| Cage | TVH “ Solid cage made of glass-fiber reinforced polyamide PA66 |
| Design | IS1 “ One lubrication hole in the inner ring |
