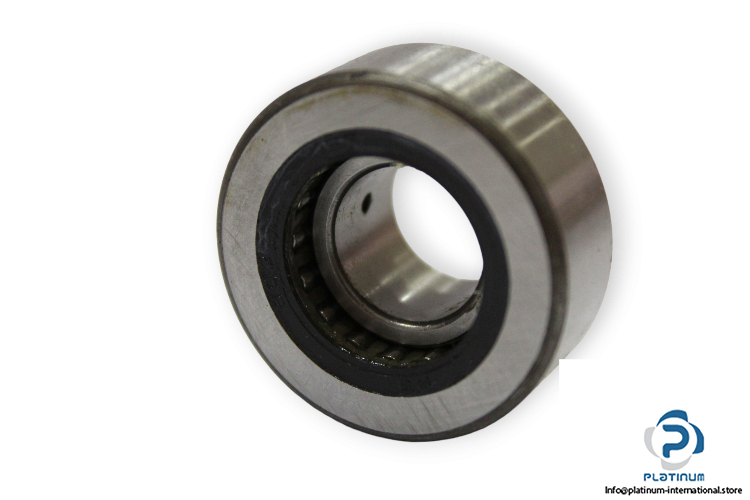

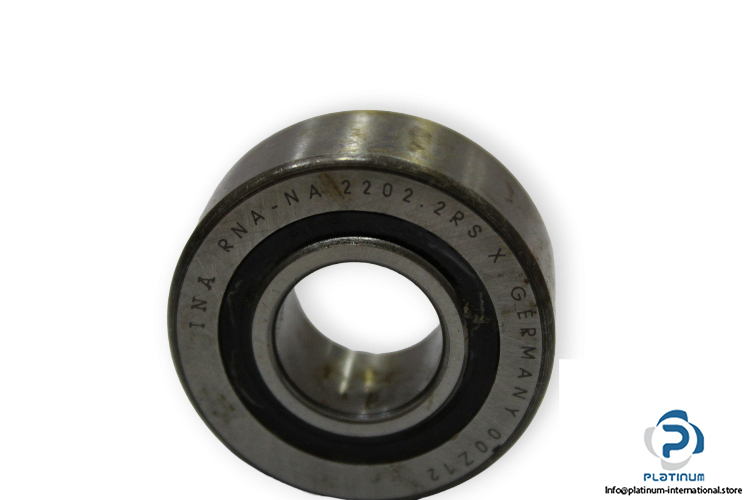

INA NA 2202.2RSX Yoke Type Track Roller

Manufacturer: Schaeffler INA

Type: Yoke type track roller

Model: NA 2202.2RSX

Bore Diameter: 15 mm

Outer diameter: 35 mm

Width, outer ring: 13.8 mm

Basic load ratings, radial:

Dynamic C_r: 6700 N

Static C_0r: 9500 N

Fatigue load limit, radial: 1400 N

Speed on permanent grease lubrication: 3400 rpm

Sealing: 2RSR, Lip seal on both sides

Relubrication feature: Via inner ring lubrication hole

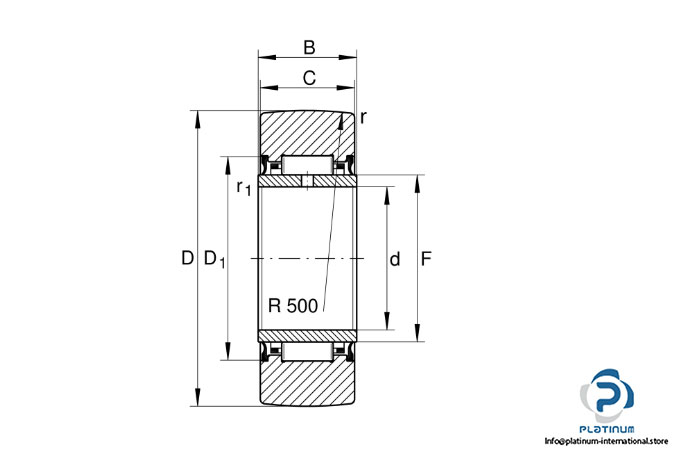

Outer Ring profile: R500
