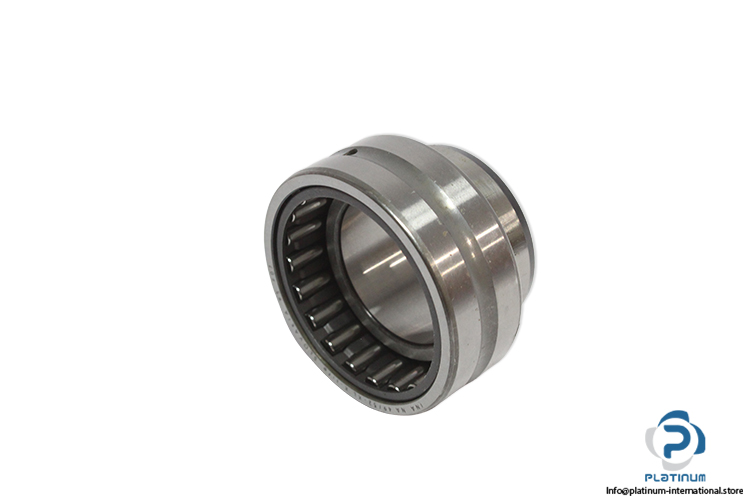

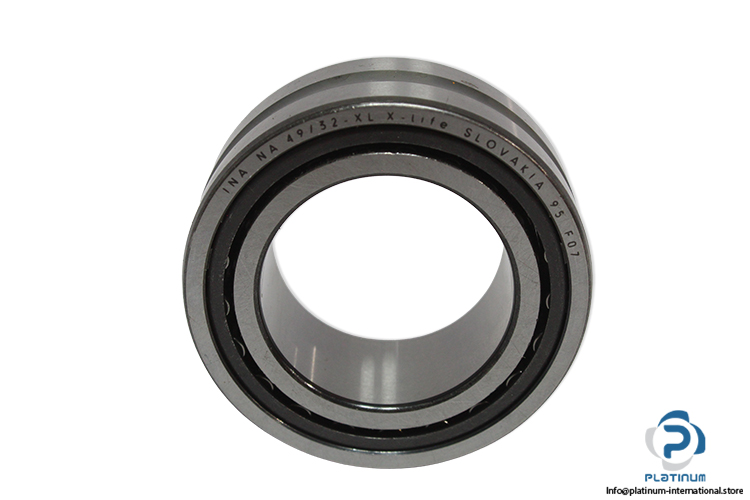

INA NA 49/32-XL Needle Roller Bearing
New
In stock5 unitsReady to ship
Needle Roller Bearing
INA NA 49/32-XL needle roller bearing with high axial load capacity, compact design, and operating temperature range from -30 to 120 °C. Recommended for gearboxes, drive systems, and heavy industrial machinery.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
INA NA 49/32-XL Needle Roller Bearing
The INA NA 49/32-XL needle roller bearing, manufactured by Schaeffler, is engineered for high load capacity and compact radial design in demanding industrial applications.
Manufacturer: INA / Schaeffler
Type: Needle Roller Bearing
Model: NA 49/32-XL
Suitable for gearboxes, transmission systems, heavy-duty machinery, and industrial drive assemblies.
Please contact us via Ask for assistance with any inquiries.
| Bore Diameter (d) | 32 mm |
| Outside Diameter (D) | 52 mm |
| Width (B) | 20 mm |
| Basic Dynamic Load Rating, Axial (Cr) | 34,500 N |
| Basic Static Load Rating, Axial (C0r) | 47,500 N |
| Fatigue Load Limit, Axial (Cur) | 9,100 N |
| Limiting Speed | 11,100 1/min |
| Reference Speed | 6,000 1/min |
| Operating Temperature | -30 to 120 °C |
