INA Natr 10 PPA Yoke Type Track Roller
New
In stock1 unitReady to ship
Yoke Type Track Roller
INA NATR 10 PPA Yoke Type Track Roller offers smooth motion with a 10 mm bore diameter and 30 mm outer diameter. It supports high dynamic load ratings of 6,800 N and offers a maximum speed of 5,500 1/min with effective sealing for long-term operation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

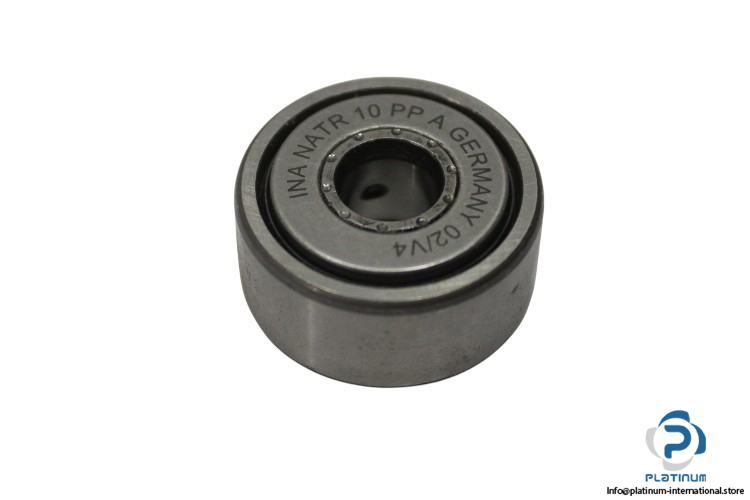

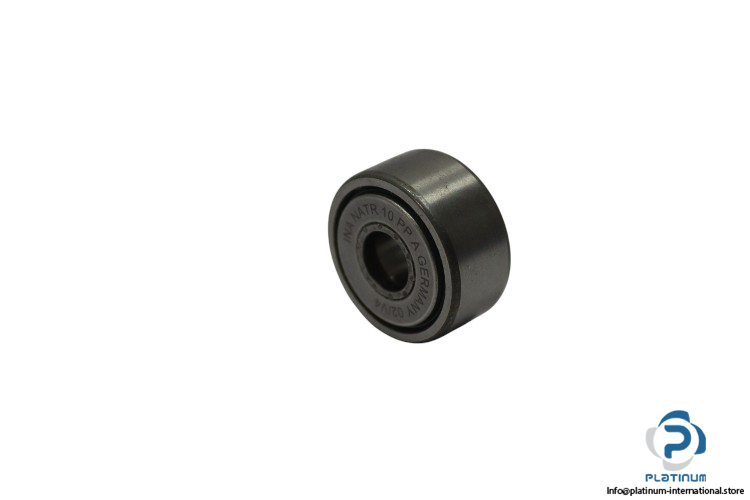

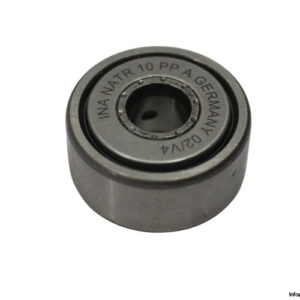

INA Yoke Type Track Roller NATR 10 PPA
The INA Yoke Type Track Roller NATR 10 PPA is designed for high-performance, smooth motion with high load capacity, ensuring reliable and efficient operation in various industrial applications.
Manufacturer: INA
Model: NATR 10 PPA
Type: Yoke Type Track Roller
| Bore Diameter (d) | 10 mm |
| Outer Diameter (D) | 30 mm |
| Bearing Width (B) | 15 mm |
| Basic Dynamic Load Rating (Radial) | 6,800 N |
| Basic Static Load Rating (Radial) | 8,700 N |
| Fatigue Load Limit (Radial) | 1,240 N |
| Speed on Permanent Grease Lubrication | 5,500 1/min |
| Permissible Static Load (Radial) | 8,700 N |
| Permissible Dynamic Load Outer Ring (Radial) | 8,700 N |
| Sealing | PP; Three-stage sealing by plastic axial plain washer on both sides |
