INA Natr 17 Yoke Type Track Roller

Manufacturer: INA
Type: Yoke type track rollers NATR
Model: NATR17

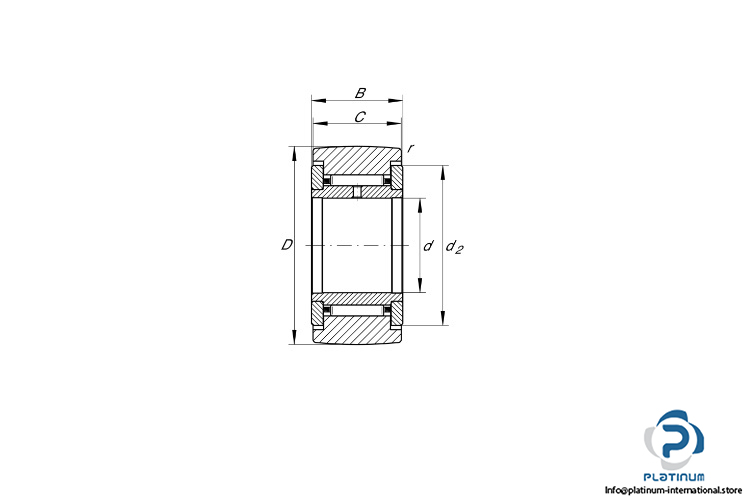

Dimensions:
Bore diameter d: 17 mm
Outside diameter D: 40 mm
Width, inner ring B: 21 mm
Basic load ratings, radial:
Dynamic C_{r w}: 10900 N
Static C_{0r w}: 16000 N
Fatigue load limit, radial: 2130 N
Speed on permanent grease lubrication: 2900 rpm
Permissible static load, radial: 16000 N
Permissible dynamic load outer ring, radial: 16000 N
Sealing: Gap seal on both sides
