INA NATR15 Yoke Type Track Roller
New
In stock7 unitsReady to ship
Yoke Type Track Roller
INA / Schaeffler NATR15 yoke type track roller designed for high radial load capacity, precise rolling guidance, and long service life in industrial motion systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

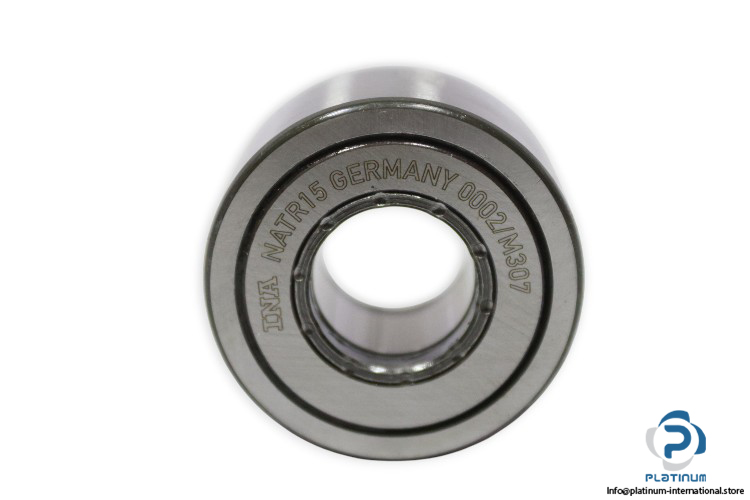

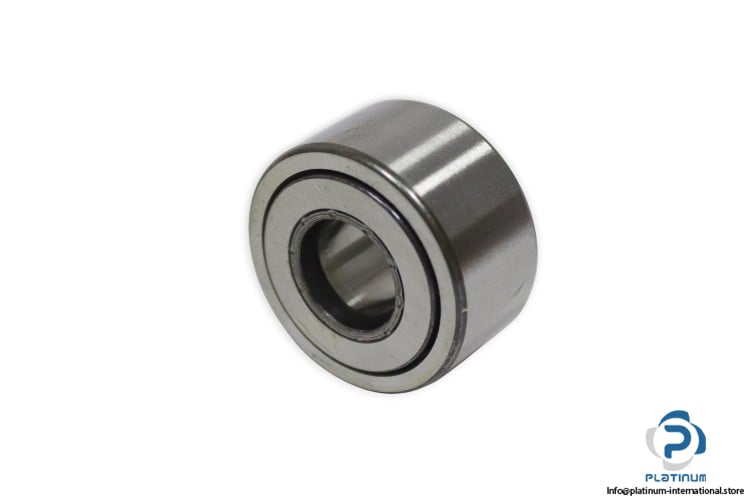

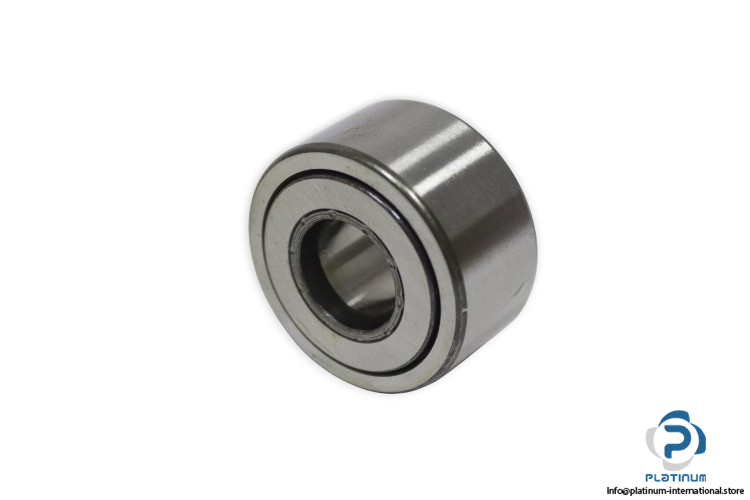

INA / Schaeffler NATR15 Yoke Type Track Roller
A high-precision yoke type track roller manufactured by INA / Schaeffler, designed for guided motion applications involving high radial loads and continuous rolling contact. This track roller features a robust outer ring, integrated thrust washers, and reliable sealing on both sides, making it suitable for cam drives, linear guidance systems, and industrial machinery.
Manufacturer: INA / Schaeffler
Type: Yoke Type Track Roller
Model: NATR15

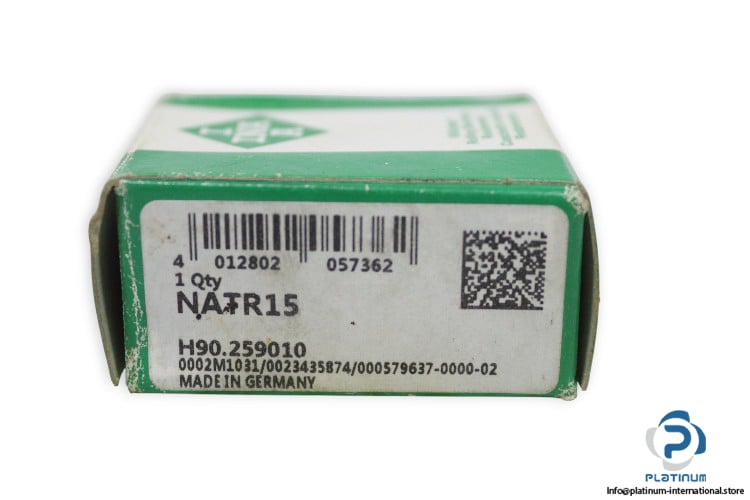

Code: H90.259010 / 0002/M307
Application:
Cam followers, linear guidance systems, conveyor mechanisms, tooling machines, and industrial automation equipment where high radial loads and precise rolling guidance are required
| Bore Diameter (d) | 15 mm |
| Outer Diameter (D) | 35 mm |
| Width of Bearing (B) | 19 mm |
| Width Outer Ring | 18 mm |
| Outside Diameter of Thrust Washer | 27.6 mm |
| Basic Dynamic Load Rating, Radial | 9,700 N |
| Basic Static Load Rating, Radial | 14,500 N |
| Fatigue Load Limit, Radial | 1,860 N |
| Speed with Permanent Grease Lubrication | 3,600 r/min |
| Sealing | SPSP Gap Seal on Both Sides |
