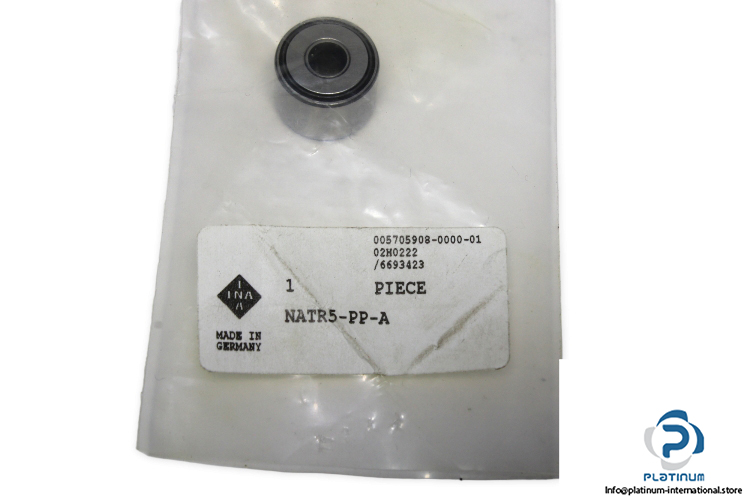

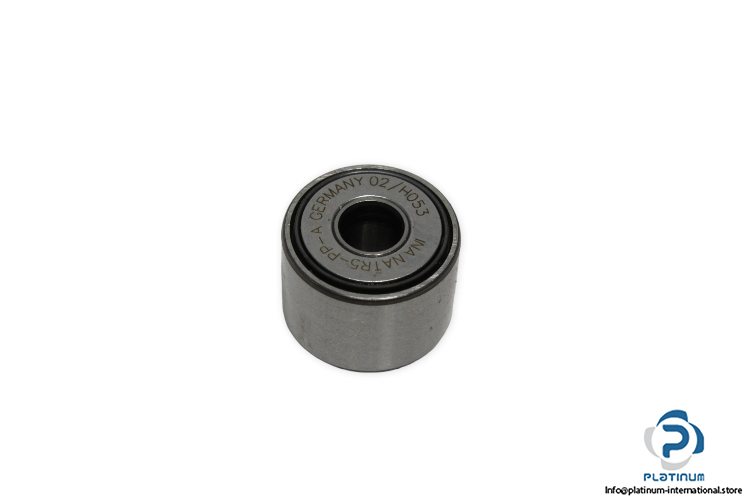

INA NATR5-PP-A Yoke Type Track Roller

Manufacturer: Schaeffler INA

Type:  Yoke type track rollers NATR, with axial guidance, axial plain washers on both sides

Model: NATR5PPA

Replaces: NATR5-PP

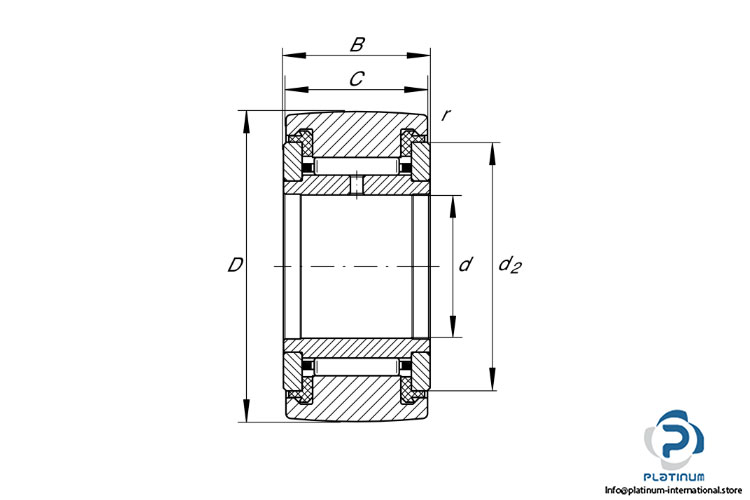

Dimensions:

Bore Diameter d: 5 mm

Outer diameter D: 16 mm

Width, inner ring B: 12 mm

Width outer ring C: 11 mm

Basic load ratings:

Dynamic C: 3200 N

Static C₀: 3450 N

Fatigue load limit P_u: 465 N

Permissible dynamic load outer ring, radial F_r: 3450 N

Permissible static load, radial F_0r: 3450 N

Speed on permanent grease lubrication: 14000 RPM

Sealing: PP, Three-stage sealing by plastic axial plain washer on both sides
